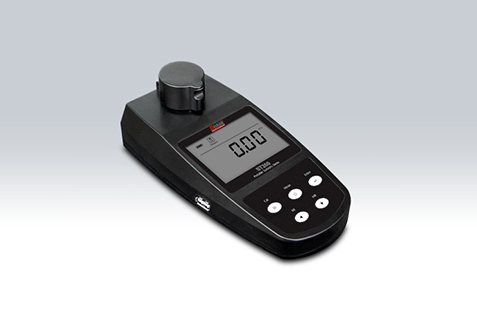

Portable Turbidimeter

Description :

High performance portable turibidimeter, 2 to 5 points calibration, selectable 4 turbidity units. The meter is suitable for process control and field use.

Features:

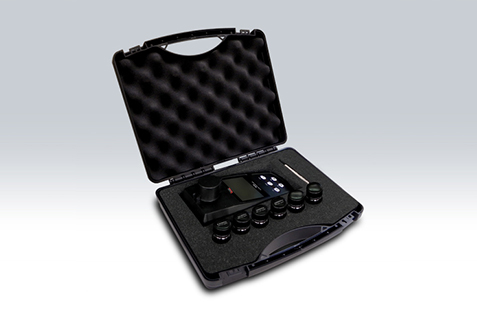

• Easy-to-use portable turbidimeter is equipped with a standard carrying case.
• 2 to 5 points calibration using the Formazin Standards.
• Selectable four turbidity units, including the NTU (Nephelometric Turbidity Unit), FNU
 (Formazine Turbidity Unit), EBC (European Brewery Convention) and ASBC (American
  Society of Brewing Chemists).
• Single measurement mode automatically recognizes the stable reading.
• Continuous measurement mode that can used for indexing and matching the sample vials.
• Auto-Power Off helps user effectively conserve battery life.
• System menu allows setting the 7 parameters, including the date and time, resolution, etc.
• Reset feature automatically resumes all settings back to factory default settings.
• Expanded memory stores and recalls up to 100 readings.
• Stored data can be transferred into computer by USB communication interface.
• Multi-mode power scheme (battery, power adapter, USB port) ensures that use the meter
  smoothly.

specification :

   Measurement Method

ISO 7027 nephelometric method (90°)

   Measurement Range

0~1100 NTU/FNU, 0~275 EBC, 0~9999 ASBC

   Resolution

0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~1100 NTU)

   Accuracy

±2% (0~500 NTU), ±3% (501~1100 NTU)

   Calibration Standards

0.02, 10, 200, 500, 1000 NTU or User-Defined

   Light Source

Infrared-emitting diode (850 nm wavelength)

   Detector

Silicon Photodiode

   Stray Light

< 0.02 NTU

   Sample Vials

60(H)×25(Dia.)mm

   Power Off

Manual or Automatic (15 minutes)

   Memory

Stores up to 100 data sets

   Output

USB Communication Interface

   Operating Temperature

0~60°C

   Ip

65

   Power Requirements

1×9V Battery

   Dimensions

180(L)×85(W)×70(H)mm

   Weight

300g
