Dual Thermometer

Description :

Microprocessor circuit assures maximum possible

accuracy, provides special functions and features.

Super large LCD display.

Dual function meter's display.

Heavy duty & compact housing case.

Maximum and Minimum readings.

Data hold.

Auto shut off saves battery life.

Operates from 006P DC 9V battery.

T1, T2, T1-T2, 1 degree/0.1 degree

Wide range from -50 to 1230 C degree.

Meet any standard type K Temp. probe.

Build in temperature linearity & precision cold junction compensation circuit, high accuracy.

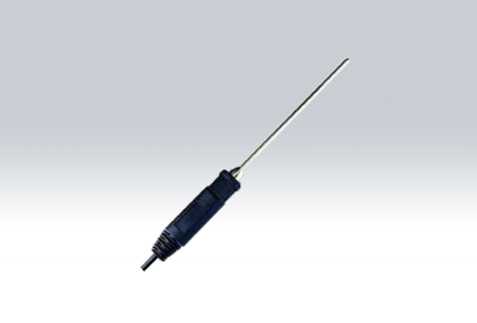

Fitted with standard type K thermocouple input measuring socket.

specification :

Circuit                                   Custom one-chip of micro processor

Memory Recall                      Records Maximum and minimum readings with recall

Display                                   13 mm(0.5") Super large LCD display

                                               Dual function meter's display

Sensor Type                           Thermocouple K(NiCr-NiAl)

Measurement                         Two channel temp. input (T1, T2), differential temperature, measurement(T1 -T2), ℃/℉, 0.11                                                 data hold

Range                                     - 50 ℃ to 1230 ℃

Sampling Time                       Approx. 0.8 to 1.0 second

Power Supply                         006P DC 9V battery. (Heavy Duty type).

Weight                                    275 g

Dimension                              180 x 72 x 32 mm
