Blood Bank Centrifuge

Description :

RKBM80P are the new generation microprocessor controlled blood bank centrifuges with forward  thinking design and technology. Ideally used for centrifugation of  whole blood & components separation like packed red cells, platelet rich plasma, platelet concentrate, cryoprecipitate and buffy coat etc.

Advance manufacturing techniques are used for mounting of brushless induction drive motor in PUF insulated, corrosion free, stainless steel armored chamber resulting in minimized vibration and noise level. The smooth acceleration/ deceleration helps in clear separation thus ensuring high quality component yield.

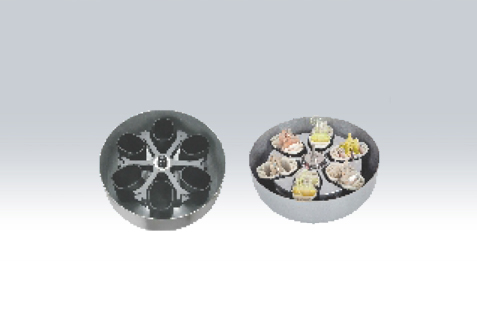

These centrifuges cater to the requirements of small, medium & large blood centers with flexibility to choose from 3 rotor options. The rotor are designed to accommodate  specific type of oval shaped metal buckets & plastic carriers for holding six, eight & twelve blood  bags of different volumes & configuration like 350 ml / 450 ml double/triple/quadruple, penta bags & inline- filter (quintuple) blood bags.

User-friendly software & controls helps in ease of operations. There is a unique facility for setting & controlling the centrifuge run either by rpm (speed) or rcf (g force) thus eliminating the need of manual calculations. Interactive menu driven programs guides the operator through the setting process of run parameters & also the operational status while centrifuges is running,

State of the art microprocessor controller equips RKBM80P with 99 programs memory, this includes special program along with four sub programs for sequential operations. There are 10 acceleration & 9 deceleration along with coasting profiles for optimum yield under different applications. The RKBM80P comes with 4” wide LCD display with advance rotary encoder.

Performance

  • Speed  holding accuracy +/- 10 RPM
  • 10 acceleration & 9 deceleration profiles and coasting
  • Temperature range from -20°C  to +40°C
  • Low noise level (≤ 55 db )
  • Choice of 3 rotor for processing 6,8 & 12 blood bags in one cycle
  • Tropicalized to run from 0°c to 40°C & RH up to 95%

Leading Technology

  • Brush-less induction drive frequency motor, practically maintenance free
  • Advanced user friendly microprocessor control
  • 99 programs (RKBM80P) memory & pre cooling
  • Sequential program of speed, time & temperature with four sub  programs
  • Programmable centrifugation parameters for accurate control
  • Dedicated PC software for management & analysis
  • Data management system through RS 232 port

User Friendly

  • Facility to set and indicate RPM or RCF
  • Simultaneous display of set & run  parameters
  • Self-diagnosis of program errors
  • Lid closing  & opening with the help of gas hinges
  • Log of latest 50 run records on LCD disply
  • Real time clock

Safety

  • Safety lid-interlock to prevent cover opening during centrifugation
  • Unbalance cut-off with indication
  • Safety key lock to prevent unauthorized use
  • Rotor over speed protection
  • Alarms for imbalance, lid open, over temperature
  • Password protection for authorized access
  • Tamper proof memory
  • Protection of data in event of power failure
  • CFC free Refrigerant & insulation

DATA ACQUISITION SYSTEM

These centrifuges have an inbuilt  system to collect & store all data related to centrifugation processes like operator code, process type, time, temp, RPM, RCF, acceleration, deceleration & process status etc. the data from the centrifuge can be transferred to a computer using a data interface. This data can be used by blood centers for quality analyses & control.

specification :



Parameter

Unit

RKBM80P

Process controls

Type

Bi-directional encoder

Menu driven programs

Nos

99

Acceleration profile

Steps

1-9

Deceleration profile

Max. speed

Steps

mm

1-9 & COASTING

4500

Max. RCF

g

6000

Max. time

Min

0-99

Dimension  ( W × D × H )

mm

840 × 940 × 950

Recommended line voltage corrector

KVA

6

Compliance

EN 60601-1, EN 60601-1-2, CE 2265, class ll a
