Designed with the busy veterinarian in mind and derived from our long running LED and LCD display centrifuges spanning over 27 years of Centrifuge manufacturing.
Dintok Centrifuges comply to all relevant EU standards of Quality and medical Devices IEC61010 and CE conformity test marks Emission, immunity to EN/IEC 61326-1, Class B
(230V 50/60Hz)
Dims (HWD mm): 235x235x350
Weight (Kg): 13 (without rotor)
Power (watts): 140
Rotor 5401 & 5424
Programs Speed Time
Haematocrit (Pcv) 12,000Rpm 300 Secs
Serum 1 6,000Rpm 600 Secs
Serum 2 5,000Rpm 300 Secs
Urine 3,500Rpm 300 Secs

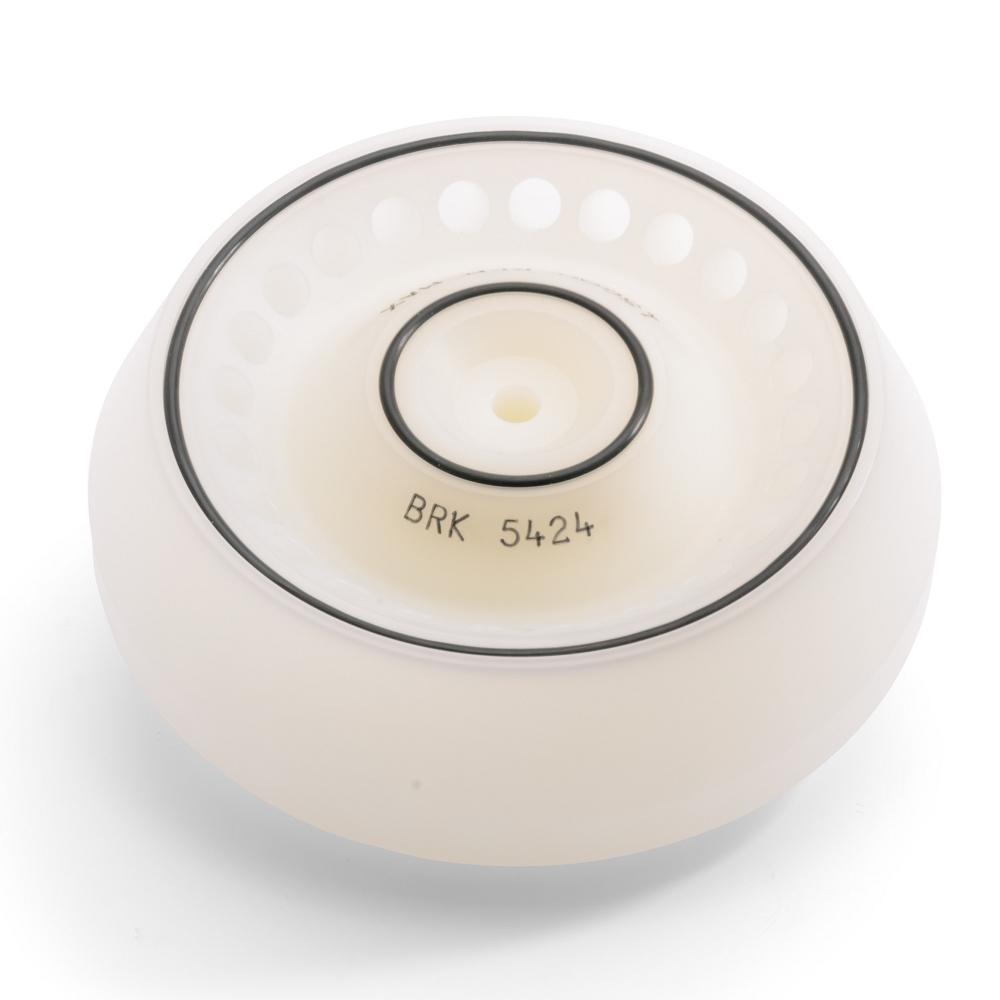

ROTOR 5401 5424
Rotor type (ml) 24 x capillary & 12 x 2 24x2ml
Tube size max (mm) 2x75 & 11x40 11x50
Minimum speed (Rpm) 500 500
Maximum speed (Rpm) 12,000 12,000
Maximum RCF (G) 13,500 13,500
Radius max (mm) 85 85
Sample tube angle (°) 0 & 60 45
Acceleration time (secs) 30 20
Deceleration time (secs) 30 20
(Autoclaveable (frequency) 121°c (10) 121°c (10)
