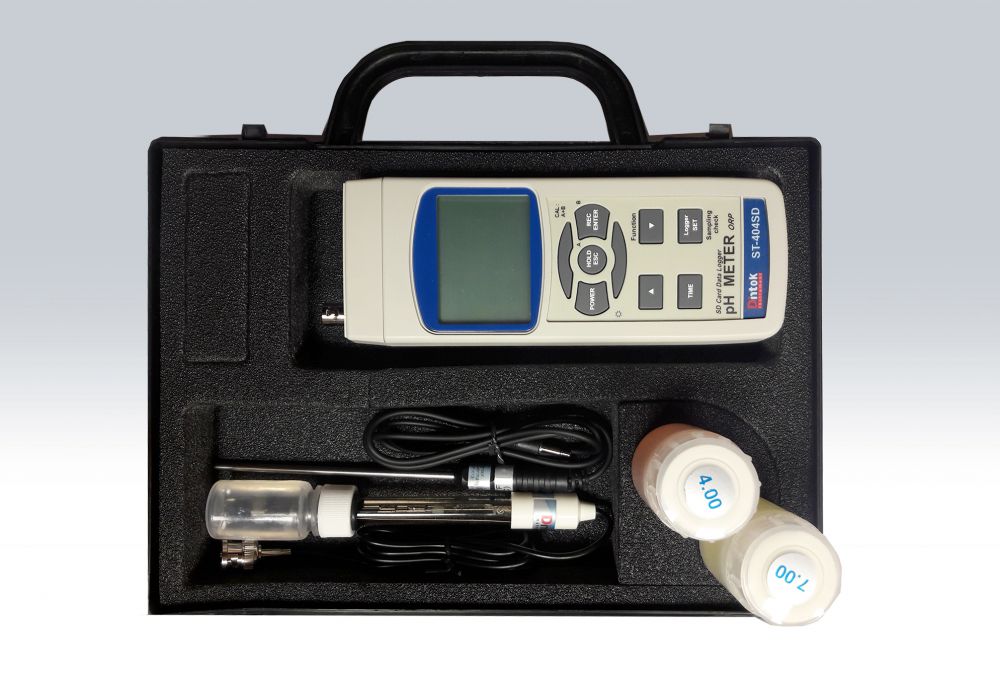

pH METER data logger

Description :

  • Real time SD memory card Data logger, it Built-in Clock and Calendar, sampling time set from 1 sec to 8 hour 59 min. 59 sec.
  • Manual data logger is available (set the sampling time to 0), during execute the manual data logger function, it can set the different position (location) No. (Position 1 to position 99).
  • Innovation and easy operation, computer is not need to setup extra software, after execute data logger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/hour /minute /second) to the Excel directly, then user can make the further data or graphic analysis by themselves.
  • SD card capacity: 1 GB to 16 GB.
  • LCD with green light backlight, easy reading.
  • Can default auto power off or manual power off.
  • Power by UM3/AA (1.5 V) x 6 batteries or DC 9V adapter.
  • Wide applications: water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning.

specification :

Real time data recorder, save the data into the SD memory card and can be download to the
Excel, extra software is no need.
pH: 0 to 14.00 pH.
mV (ORP): -1999 mV to 1999 mV.
Manual temperature compensation.
ATC (automatically temperature compensation) via optional Temp.
Auto calibration for pH 7.0, pH 4.0 and pH 10.0.

Operating humidity: Less than 85% R.H.

Operating temperature: 0 to 50 ℃.
Data hold, Record (Max., Min.).
RS232/USB computer interface.

Power Supply:

A Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.

Power Current:

Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 14 mA.

When SD card save the data and LCD Backlight is OFF) : Approx. DC 37 mA.

If LCD backlight on, the power consumption will increase Approx. DC 12 mA.

Dimension: 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)

Weight: 489 g/1.08 LB.
Patent: Germany Nr. 20 2008 016 337.4
