Explosion proof plug and socket




  • 1

    1

    بررسی و خرید
  • Description :

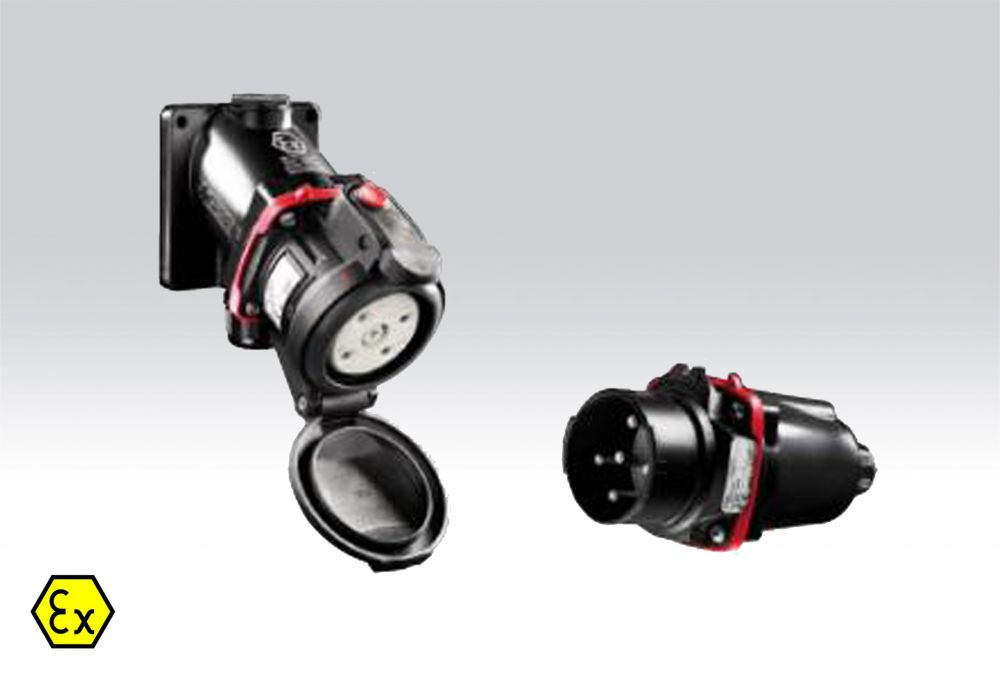

    DXA

    II2 G D Ex de IIC, Ex tb IIIC

    Automatic IP66/IP67 water-and dust-tight

    Integrated load-break switch

    Lockable in connected or disconnected position with optional lockout shaft

    Low temperature rating of -55°C

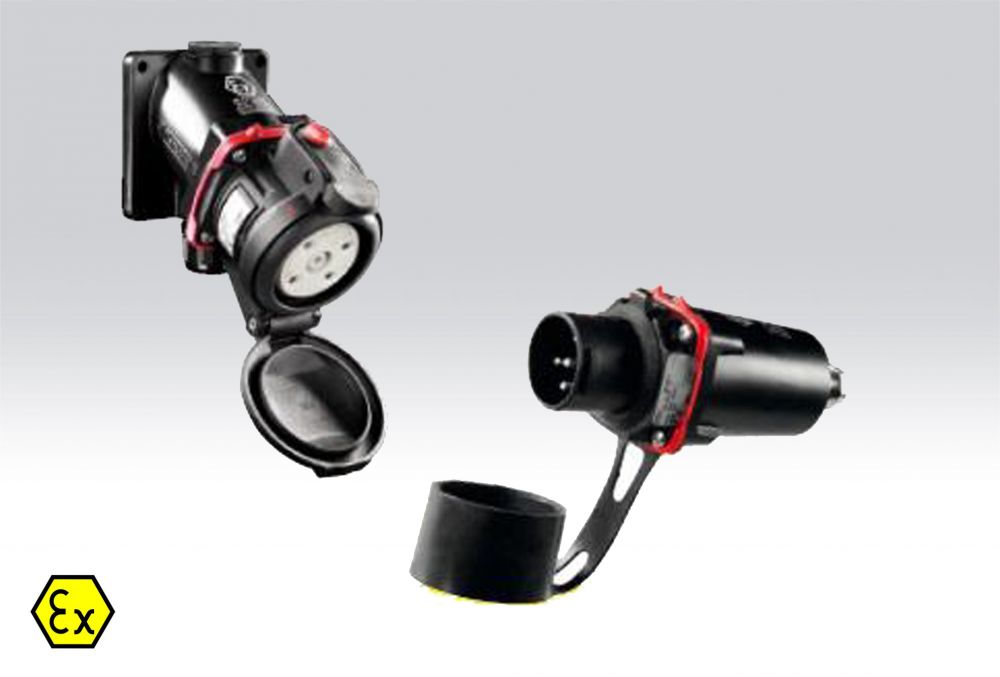

    DXN

    II2 G D Ex de IIC, Ex tb IIIC

    Automatic IP66/IP67 water-and dust-tight

    Integrated load-break switch

    Robust and compact design

    High performance GRP casing

    specification :

    MAIN FEATURES for DXA

    Rated current (with wiring according to standard): 20 A

    Ambient temperature: -55 °C to +60 °C

    Maximum voltage: 550 V

    Flexible wiring (min-max): 1-4 mm2

    IP protection lid closed: IP66/IP67

    Stranded wiring (min-max): 1,5-6 mm2

    IP protection plug connected: IP66/IP67

    ATEX zones: 1 & 2, 21 & 22

    Shock resistance: IK10

    Keying positions: 24



    MAIN FEATURES for DXN

    Rated current (with wiring according to standard): 20 A

    Flexible wiring (min-max): 1-4 mm2

    Maximum voltage: 550 V

    Stranded wiring (min-max): 1,5-6 mm2

    IP protection lid closed: IP66/IP67

    Other wiring: on request

    IP protection plug connected: IP66/IP67

    Keying positions: 24

    Shock resistance: IK08

    Protection mode: de, tb

    Ambient temperature: -40 °C to +60 °C

    ATEX zones: 1 & 2, 21 & 22

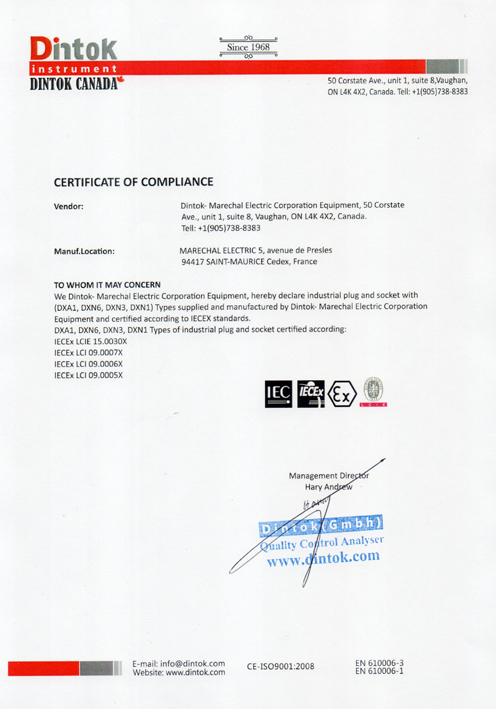

      Download Certificate

    certificate
