Introduction

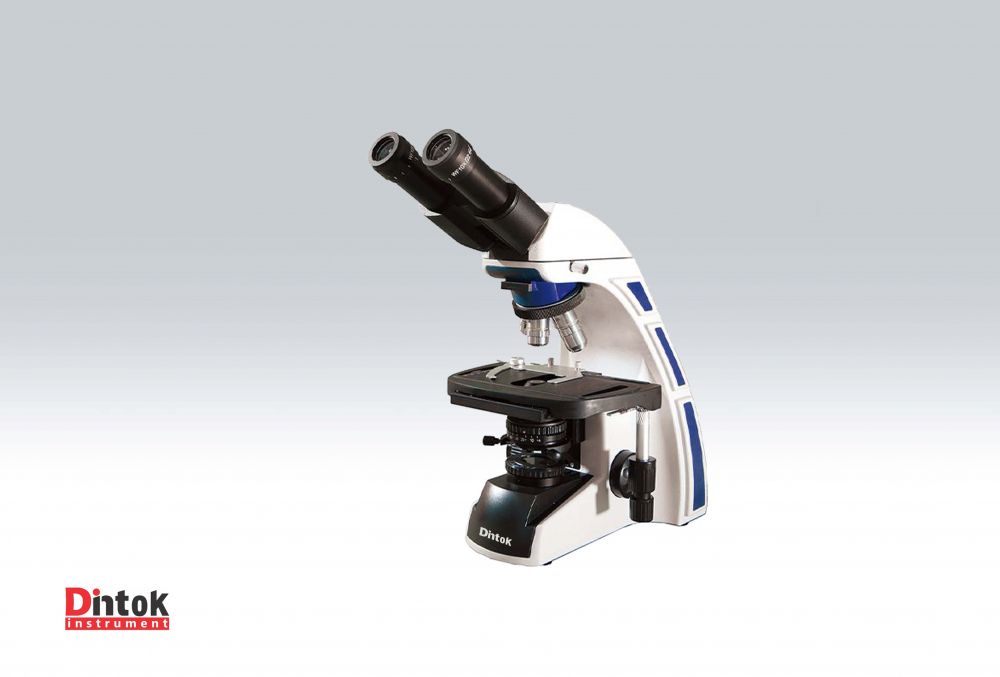

BM-4T series microscopes are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.
Features
Infinite Optical System.
WF10×/22mm eyepiece with diopter adjustment.
Sliding-in Centerable Condenser.
Easy carrying handle.
Application
BM-4T series microscopes are ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.
Optics |
Infinity Optical System |
Observation Tubes |
Seidentopf binocular head/Seidentopf trinocular head, 50-75mm |
Viewing Head |
Seidentopf head, inclined at 30°, 360° rotatable |
Optical Coating |
Transmittance ≥ 95% |
Eyepiece |
Wide field eyepiece WF10×22mm |
Objective |
Infinite plan achromatic objective: 4X, 10X, *20X, 40X, 100X |
Flour semi-apo objective: 4X, 10X, 20X, 40X, 100X |
|
Infinite plan phase objective: Ph10X, 20X, 40X, 100X |
|
Nosepiece |
Quadruple nosepiece / *Quintuple nosepiece |
Stage |
Double layers mechanical stage 210×150mm / 75×50mm |
Condenser |
Abbe condenser N.A.1.25 with iris diaphragm & filter |
Focusing |
Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 24mm |
Illumination |
LED illumination, brightness adjustable |
Electricity |
100-240V AC,50/60Hz |
Package Dimension (W*D*H) (mm) |
530*330*480 |
Gross Weight (Kg) |
9 |
*Optional |
Phase contrast kit; Drak field attachment; Microscope camera (Standard imaging software) / Win 10 Pad / Digital display |
