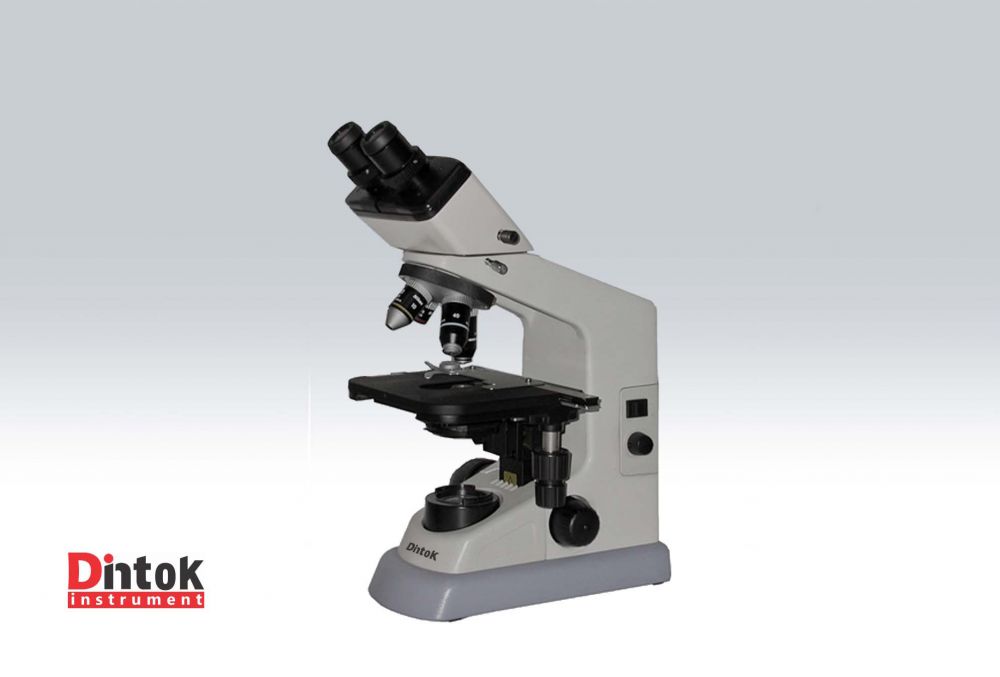

Trinocular/Binocular Microscope




  • 1

    1

    بررسی و خرید

    • Description :

    High efficiency, flexibility and stability are the characters of this series microscope. It is specially developed forvarious applied scopes. It is widely used, from daily work to scientific research, in Laboratory, Hospitals and Colleges.

    Features:
    1. Wide-field Eyepiece, high light illumination and superior optical parts make the image clear, sharp and bright.
    2. Backward nosepiece with superior objectives makes the best viewing effect and more space for the operator.
    3. Wide mechanical stage with 2 microslide specimen clamp provides more convenience for the observer.
    4. High precision focusing adjustment system and humanized configuration design provide operator more comfortable.
    5. Frontal undrawing type Light collector framework, makes the user change the bulb more quickly and easily


    specification :

    Specification

    Viewing
    head


    Sliding Free Trinocular/Binocular Head .
    Inclined at 45 °
    ( 52mm-74mm )


    Eyepiece


    WF10X


    Objective

    Achromatic objective:
    objective:4X,10X,40X(S),
    100X(S)Oil



    Stage


    Double layers
    mechanical stage


    Stage size:180mmX 150mm

    Moving range :75mmX 50mm


    Condenser


    N. A.1.25 Abbe condenser
    with iris diaphragm filter


    Focusing


    Coaxial coarse & fine focusing
    adjustment with rack and
    pinion mechanism Fine focusing
    scale Value 0.002mm


    Collector


    High brightness
    Kohler illumination


    Light source


    Halogen tungsten bulb
    12V/20W.AC85V-230V


    Adjustable brightness



    Optional Accessory


    Eyepieces:


    WF16x,WF20x,P16x CMOS
    electronic eyepiece of
    1.3 Mega pixels.


    Plan-Achromatic objectives:


    4X,10X,20X(S),40X(S),
    60X(S)  100X(S)Oil


    Semi-plan objectives:


    4X,10X,20X(S),40X(S),
    60X(S),100X(S)Oil


    Infinity plan-objective :


    4X,10X,20X(S),40X(S),
    60X(S),100X(S)Oil

    Phase Contrast
    Attachment


    Photo and CCD
    attachment
