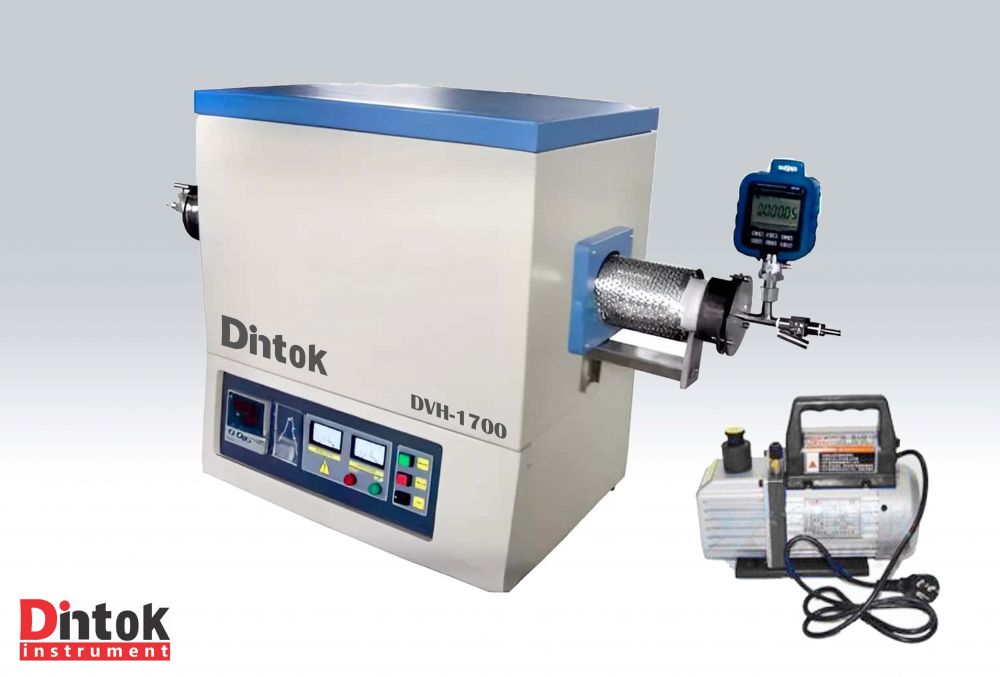

Tube-1700 high-temperature vacuum tube furnace takes MoSi2 heating elements as heating elements and its rating temperature is 1700C, and adopts B-type thermocouple to measure temperature and auto-control the temperature by 708 P-automatic temperature instrument. It has high precision in temperature control (± 1ºC). In addition, the furnace with a vacuum device can work under a variety of atmosphere that greatly increasing the scope of its application.
| Model | DHV-1700 |
| Furnace tube | High purity alumina tube(Al2O3>99%) |
| Tube size | OD40/60/80*Length 1000mm, heating zone:300mm |
| Furnace structure | Double layer steel structure with fan cooling |
| Working Temperature: | 1600ºC |
| Max Temperature | 1700ºC |
| Temperature control | 50 segment programable and PID auto control |
| Heating rate | 0-15ºC/min(suggestion:≤10ºC) |
| Temperature accuracy | ±1ºC |
| Heating element | MoSi2 heating elements |
| Thermocouple | B type |
| Max vacuum | 1-10PA |
| Working voltage | AC 220V, 50/60HZ, single phase |
standard sizes for the tube furnace
| Model | Chamber size | Max. Temperature |
| Tube-1700 | Dia40x300mm (1.5"x12") | 1700.C |
| Tube-1700 | Dia40x400mm (1.5"x16") | 1700.C |
| Tube-1700 | Dia60x300mm (2.5"x12") | 1700.C |
| Tube-1700 | Dia60x400mm (2.5"x16") | 1700.C |
| Tube-1700 | Dia80x300mm (3.0"x12") | 1700.C |
| Tube-1700 | Dia80x400mm (3.0"x16") | 1700.C |
| Tube-1700 | Dia100x300mm (4.0"x12") | 1700.C |
| Tube-1700 | Dia100x400mm (4.0"x16") | 1700.C |
For other sizes, we can make as your requirement.
