Long Reach Combination pH Electrode




  • بررسی و خرید
  • Description :

    Description

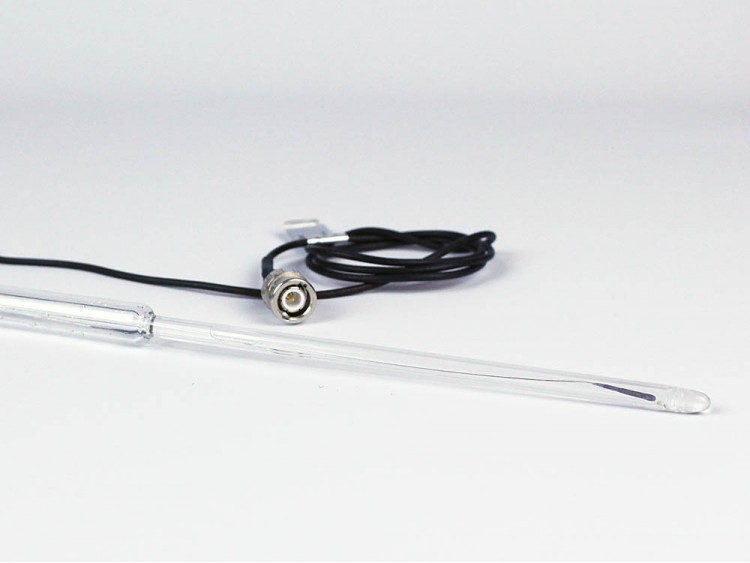

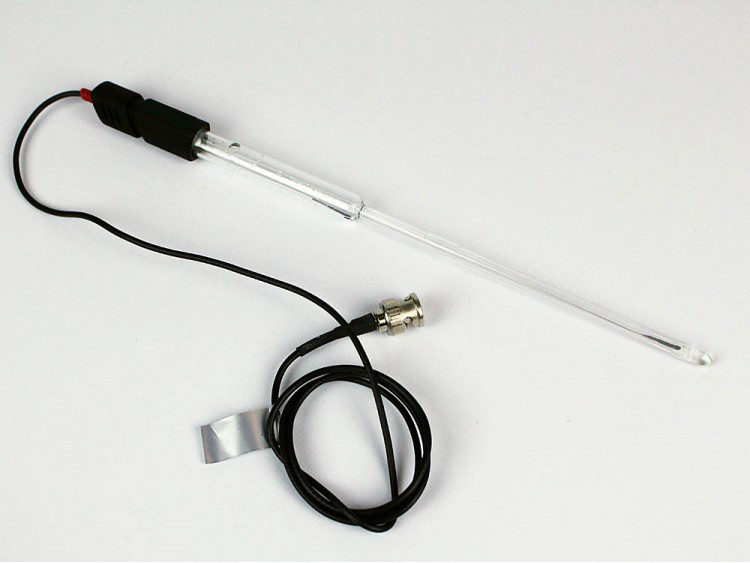

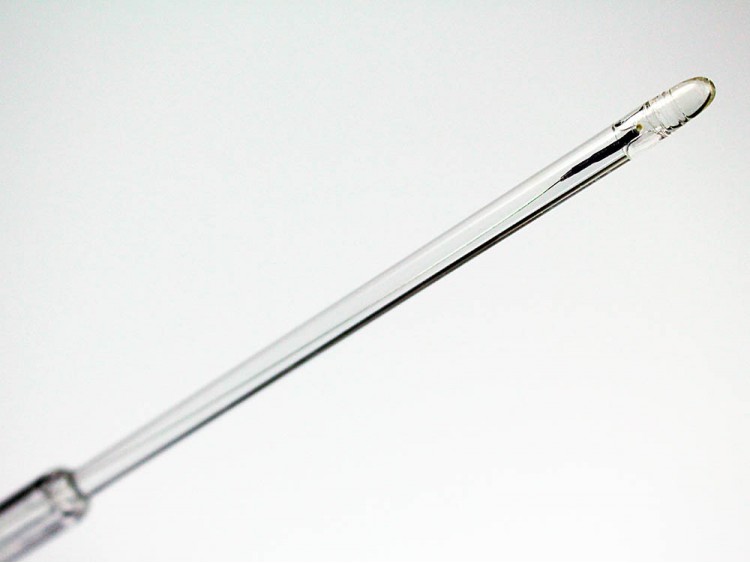

    A glass bodied long reach  pH combination electrode with a 6mm diameter tip for the lower 15cm section.

    The St 6044 is ideal for the measurement of small samples in small containers or tubes or for inaccessible samples which are deeper inside vessels or reaction chambers etc. The upper part of the electrode is a standard 12mm diameter and fits all standard cell holders and clamps.

    The St 6044 does not require a separate reference electrode and is compatible with all Smart Co pH meters and most modern alternatives with a BNC socket.

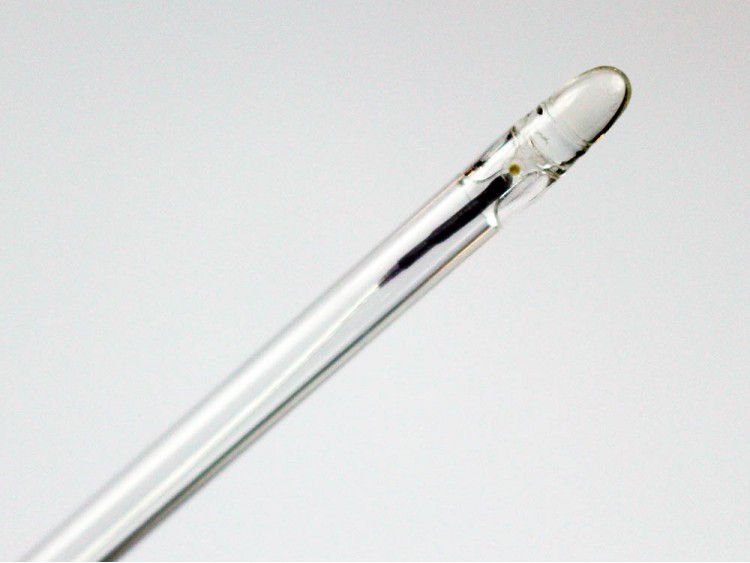

    Many long reach pH electrodes have tips which are 3.5 or 3.7mm diameter making them very fragile and impractical for use in a busy laboratory. The St 6044 has a toughened glass tip and a ceramic reference junction which ensures excellent stability a fast response time. The electrode is refillable with KCL filling solution saturated with Ag/AgCl.

    The St 6044 pH combination electrode comes complete with a 1 metre fixed cable and a BNC connector.

    specification :

    Body Type

    Glass

    Cable length

    1000mm

    Cap Diameter

    16mm

    Connector

    BNC

    Diameter

    12mm from the cap down to 4.5mm at the tip.

    Junction Type

    Ceramic

    length

    250mm

    Reference Type

    Ag/AgCl
