Introduction

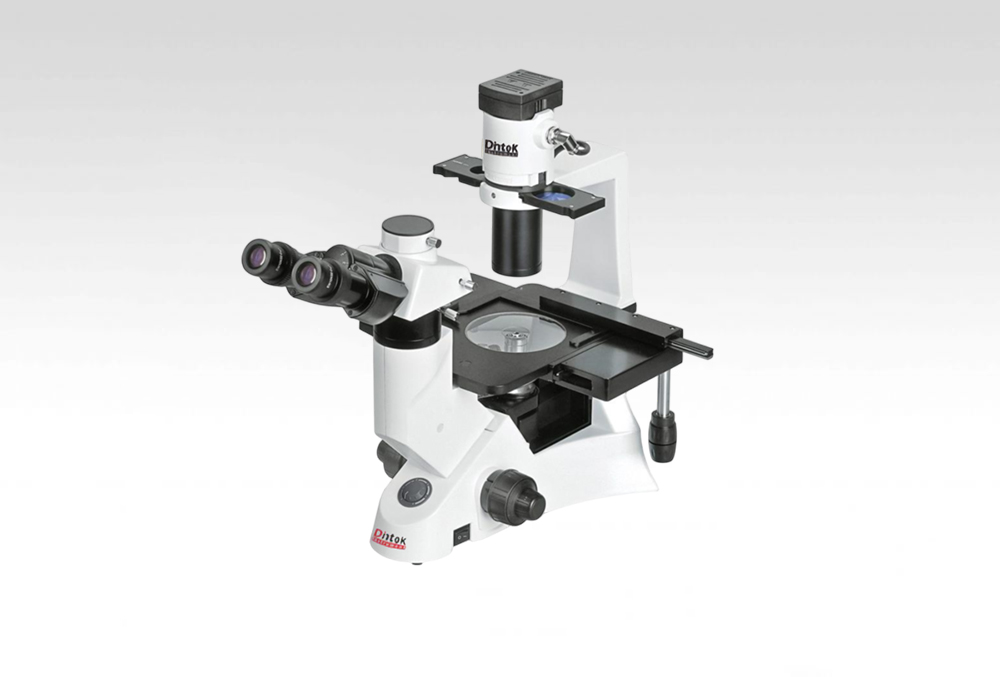

Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell culture and particularly those stained with GFP or RFP. Infinite optical system gives excellent optical performance. Excellent high resolution fluorescent objectives are optional to generate high quality fluorescent images. This microscope can be your best assistant in laboratory research for brightfield, phase contrast and epi-fluorescence imaging.
Application area
Inverted Fluorescent Biological Microscope is mainly used in live cell imaging, fluorescence imaging in general, disease examination, bacteria, viral studies, immune diagnosis and laboratory research fields.
References
This microscope is one of our best-selling products and has been sold to many places in USA, Canada, Germany, UK, Australia and so on. If you need a reference, please feel free to contact us.

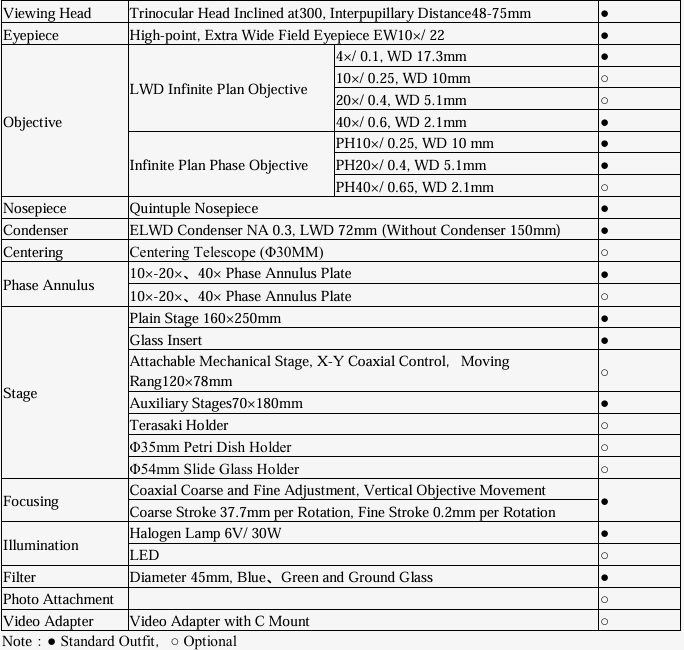

Feature
Optical System |
Infinite Optical System |
● |
|||
Viewing Head |
Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm |
● |
|||
Eyepiece |
High-point, Extra Wide Field Eyepiece EW10×/ 22 |
● |
|||
Nosepiece |
Quintuple Nosepiece |
● |
|||
Objective |
LWD Infinite Plan Objective |
4×/0.1, WD 17.3mm |
● |
||
10×/0.25, WD 10mm |
○ |
||||
20×/0.4, WD 5.1mm |
○ |
||||
40×/0.6, WD 2.1mm |
● |
||||
Infinite Plan Phase Objective |
PH 10×/0.25, WD 10mm |
● |
|||
PH 20×/0.4, WD 5.1mm |
● |
||||
PH 40×/0.6, WD 2.1mm |
○ |
||||
Infinite Plan Fluorescent Objective |
4×/0.13, WD 16.3mm |
○ |
|||
10×/0.3, WD 12.4mm |
○ |
||||
20×/0.4, WD 1.5mm |
○ |
||||
40×/0.6, WD 2.2mm |
○ |
||||
Condenser |
ELWD Condenser NA 0.3, LWD 72mm |
● |
|||
Focusing |
Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation |
● |
|||
Stage |
Plain stage 160×250 mm |
● |
|||
Glass Insert |
● |
||||
Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×78 mm |
○ |
||||
Auxiliary Stage 70×180mm |
● |
||||
Terasaki Holder |
○ |
||||
ф38mm Petri Dish Holder |
○ |
||||
ф54mm Slide Glass Holder |
○ |
||||
Illumination |
Halogen Lamp6V/ 30W |
● |
|||
Filter |
Blue/ Green and Frosted Glass Filter (ф45mm) |
● |
|||
Phase Annulus |
● |
||||
Centering Telescope(ф30) |
○ |
||||
Photo Attachment |
Photo Attachment for SLR Cameras |
○ |
|||
Video Adapter |
Video Adapter with C Mount |
○ |
|||
Reflected Light Source |
Excitation |
Dichroic Mirror |
Barrier Filter |
||
Blue Excitation |
BP460~490 |
DM500 |
BA520 |
● |
|
Blue Excitation (B1) |
BP460~495 |
DM505 |
BA510-550 |
○ |
|
Green Excitation |
BP480~550 |
DM570 |
BA590 |
● |
|
Ultraviolet Excitation |
BP330~385 |
DM400 |
BA420 |
○ |
|
Violet Excitation |
BP400~410 |
DM455 |
BA455 |
○ |
|
Lamp |
100W HBO Ultra Hi-voltage Spherical Mercury Lamp |
● |
|||
Protection barrier |
Barrier to Resist the Ultraviolet Light |
● |
|||
Power Supplier |
Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display |
● |
|||
Immersion Oil |
Fluorescent Free Oil |
● |
|||
Filter |
Neutral ND25/ ND6 Filter |
○ |
|||
Centering Plate |
● |
