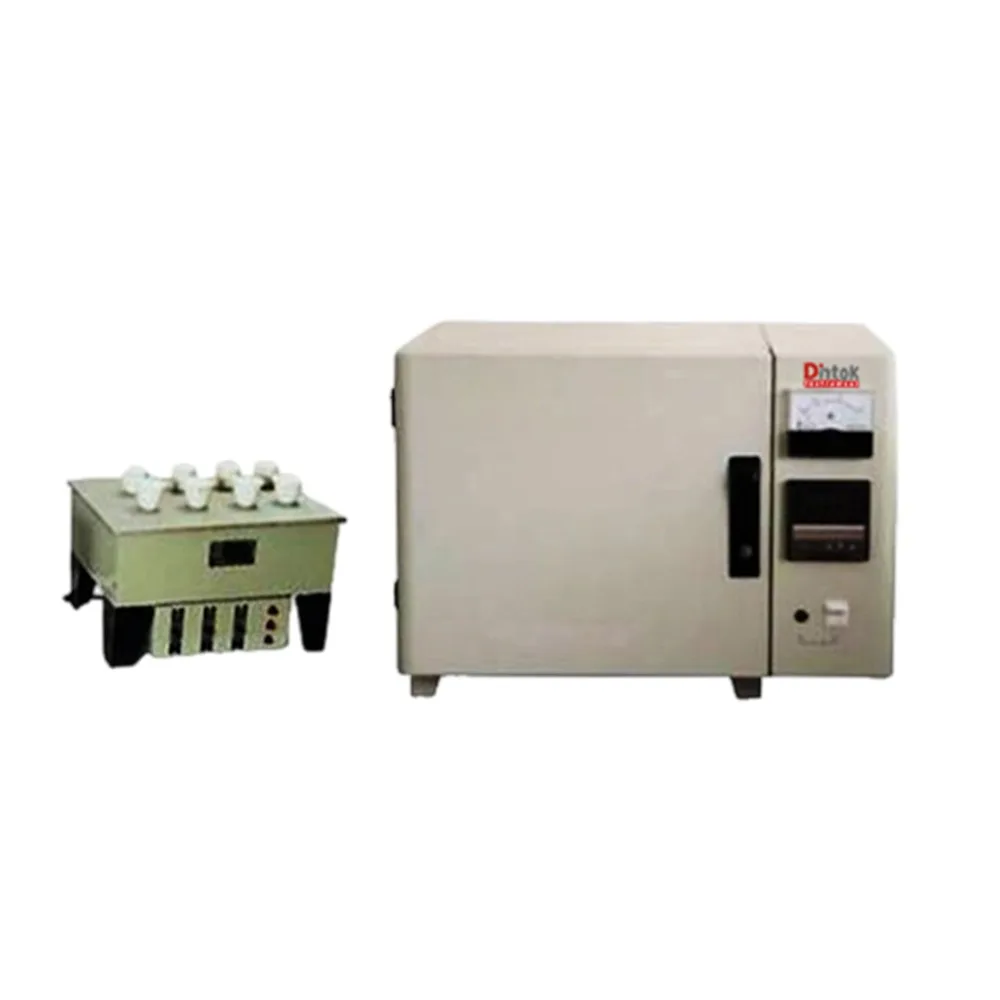

Ash Content Tester DAs-351

The instrument is designed and made as per “Test Methods for Ash Content of Petroleum Products”. It is suitable to determine ash content of petroleum products. The instrument is not suitable to determine petroleum product added ash-forming additive (including certain phosphorus compounds), lubricating oils containing lead, and used engine cranked oils.

Specification :

Technical parameters

1. Power supply: AC 220V±10%, 50 Hz

2. Heating power of electric furnace: 2400 W

3. High temperature furnace (Case furnace):

(1) Heating temperature: 775±25°C

(2) Rated power: 2500 W

4. Heating control: manually control using a switch

5. Porcelain crucible: 50 ml, 100 ml

6. Dimensions (m): 0.75×0.64×0.6, 0.59×0.49×0.49

Accurate, Efficient Ash Content Determination with the Ash Content Tester DAs-351

Ensure precise measurement of inorganic residue in petroleum products, lubricants, additives, and biomass with the Ash Content Tester DAs-351—a high-performance, microprocessor-controlled muffle furnace engineered for compliance with ASTM D482, ASTM D874, ISO 6245, and IP 39 standards. Ideal for oil refineries, quality control labs, and biofuel producers, the DAs-351 delivers consistent, repeatable ash content results critical for assessing contamination, additive levels, and fuel purity.

Engineered for Standardized, Safe, and Efficient Testing

The DAs-351 Ash Content Tester features a robust high-temperature muffle furnace capable of reaching 900°C with ±1°C stability, ensuring complete combustion of organic material while preserving inorganic ash. Its digital PID temperature controller, programmable heating ramp, and forced-air cooling system streamline the ashing process—from initial charring to final ignition—while minimizing operator exposure to fumes and heat.

Compliant with ASTM D482 / D874 & ISO 6245 – Validated for sulfated and non-sulfated ash testing in oils and fuels.
Precise Temperature Control: Up to 900°C (±1°C) – Ensures complete and reproducible ash formation.
Programmable Heating Profiles – Automates pre-ignition charring and high-temp ashing to prevent sample flare-ups.
Stainless Steel Chamber with Ceramic Fiber Insulation – Energy-efficient, durable, and resistant to thermal shock.
Built-in Exhaust & Fume Management – Optional vent connection for safe removal of combustion byproducts.
Compact Benchtop Design with Safety Interlock – Automatic power cutoff when door is opened during operation.

Trusted in Fuel and Lubricant Analysis

Ash content directly impacts engine performance, catalyst life, and emissions. High ash levels may indicate metallic additives, contamination, or poor refining—making accurate testing essential for product certification and troubleshooting. The DAs-351 enables labs to process multiple crucibles simultaneously with minimal manual intervention, improving throughput while maintaining strict adherence to international methods.

Whether you’re testing engine oils, marine fuels, or biodiesel feedstocks, the Ash Content Tester DAs-351 combines regulatory compliance, operational safety, and laboratory efficiency in one reliable system.

Turn combustion into clarity—with precision you can trust.
