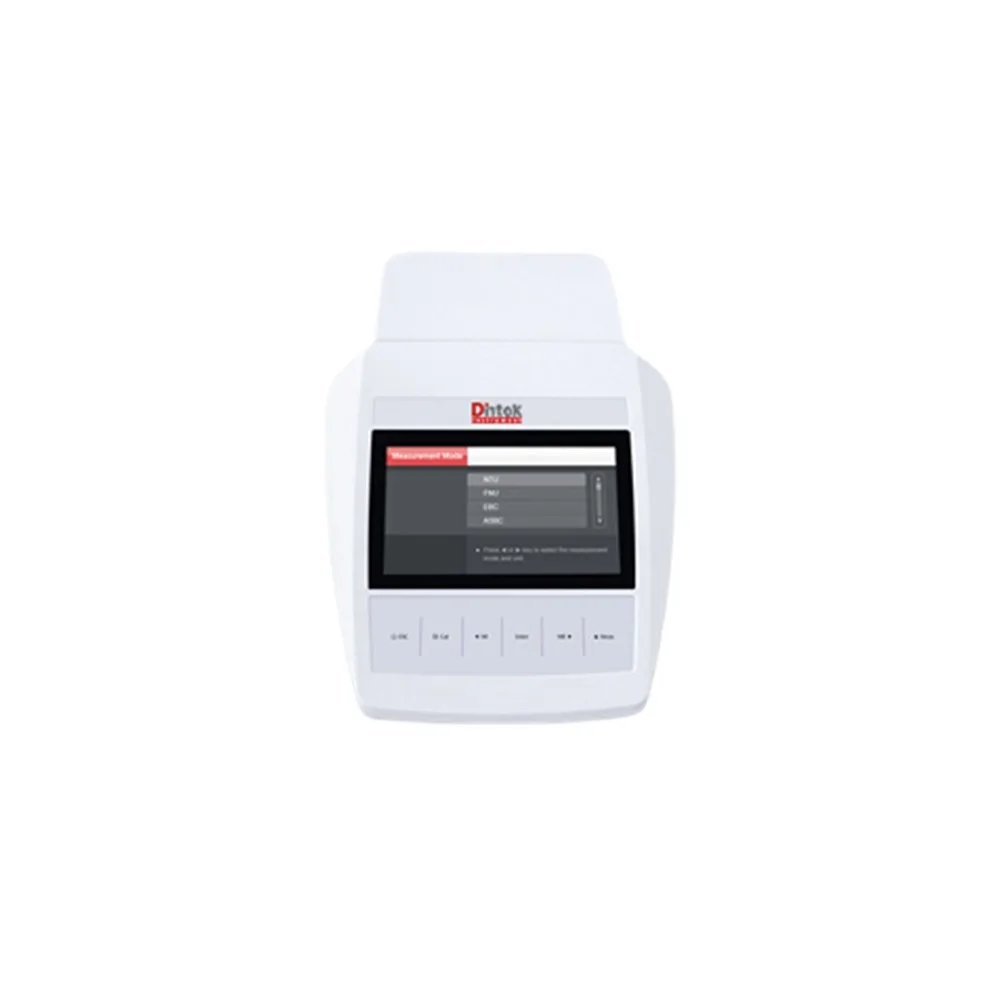

Benchtop Turbidimeter ST230
Standard benchtop turbidity meter with Total Suspended Solids measurement mode, 2 to 7 points calibration, selectable 4 turbidity units. The meter is suitable for laboratory use.
Features:
• Standard benchtop turbidity meter is equipped with a 4.5″ LCD display.
• 2 to 7 points calibration using the Formazin Standards.
• Selectable four turbidity units, including the NTU, FNU, EBC and ASBC.
• TSS conversion factor ensures accurate measurement for Total Suspended Solids.
• Continuous measurement mode that can used for indexing and matching the sample vials.
• Hold function freezes current reading for easy viewing and recording.
• Password protection prevents the unauthorized calibration and settings.
• Help message as a operational guide that helps user quickly begin using the instrument.
• System menu allows setting the 9 parameters, including the date and time, resolution, auto-power off, etc.
• Reset feature automatically resumes all parameters back to factory default options.
• Expanded memory stores and recalls up to 200 readings.
• Stored data can be transferred into computer by USB communication interface.
Specification :
Measurement Method ISO 7027 nephelometric method (90°)
Turbidity Range 0~2000 NTU/FNU, 0~500 EBC, 0~9999 ASBC
TSS Range Deponds on conversion factor
Resolution 0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~2000 NTU)
Accuracy ±2% (0~500 NTU), ±3% (501~2000 NTU)
Calibration Standards 0.02, 10, 200, 500, 1000, 1500, 2000 NTU or User-Defined
Light Source Infrared-emitting diode (850 nm wavelength)
Detector Silicon Photodiode
Stray Light < 0.02 NTU
Sample Vials 60(H) ×25(Dia)mm
Power Off Manual or Automatic (2 hours after last key pressed)
Reset Function Yes
Memory Stores up to 200 data sets
Output USB Communication Interface
Operating Temperature 0~60°C
Power Requirements DC12V Power Adapter
Dimensions 250(L)×177(W)×96(H)mm
Weight 1.2kg
Accurate, Reliable Turbidity Measurement for Water Quality Assurance
Benchtop Turbidimeter ST230 ensure compliance and protect public health with our range of turbidimeters—precision instruments designed to measure the cloudiness or haze in water caused by suspended particles. Essential for drinking water treatment, wastewater monitoring, environmental testing, and industrial process control, our turbidimeters deliver fast, repeatable results in compliance with EPA Method 180.1, ISO 7027, and USEPA GLI standards.
Engineered for Clarity and Compliance
Our turbidimeters utilize either nephelometric (90° scatter) or ratio (multi-angle) optical technology to detect particles as small as 0.1 µm, providing accurate readings from 0.01 to 1,000 NTU/FNU. Designed for both lab and field use, models range from portable handheld units to benchtop and online process analyzers—each built for stability, ease of use, and minimal maintenance.
- Compliant with EPA 180.1 & ISO 7027 – Choose infrared (ISO) or white light (EPA) optics based on regulatory needs.
- Wide Measurement Range – From ultra-low turbidity in drinking water (<0.1 NTU) to high-solids wastewater.
- Automatic Calibration & Diagnostics – One-button calibration with standards; alerts for bubbles, fouling, or lamp errors.
- Durable Designs – IP67-rated portables for field use; rugged benchtops for daily lab analysis.
- Data Management – GLP-compliant logging, timestamped results, and USB/Bluetooth export on select models.
- Low Maintenance & Long Lamp Life – LED light sources ensure stability and reduce consumable costs.
Trusted Across Water and Environmental Sectors
From municipal water plants verifying filter performance to environmental consultants assessing stormwater runoff, our turbidimeters support regulatory reporting, process optimization, and early contamination detection. Their intuitive interfaces require minimal training, while high repeatability ensures confidence in every reading.
Whether you need spot-check capability or continuous monitoring, our turbidimeters provide the accuracy, reliability, and compliance assurance your water quality program depends on.
See clearly. Measure confidently. Protect water integrity.
