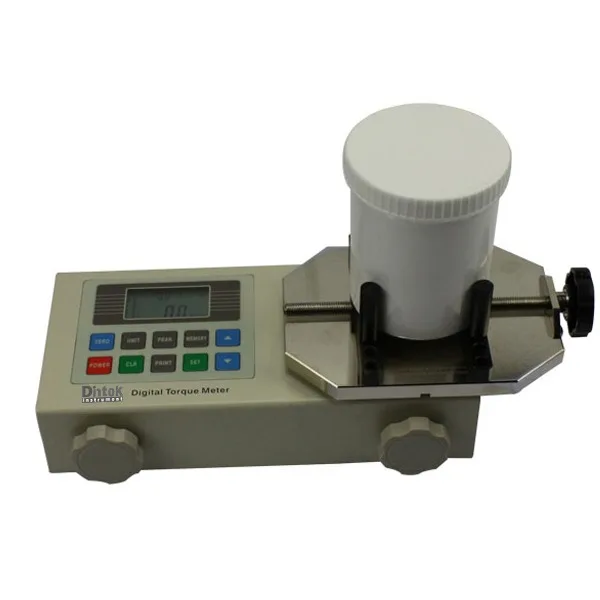

Cap Torque Tester DT5000
Cap Torque Tester ,model: DT5000, widely used in lighting, cosmetics, medical supplies, food, chemical industry, electronics and other fields products torque test.
Cap Torque Tester has high precision, accuracy at ± 0.5% +1 digit within, Kgf.cm / Lbf.in /N.m conversion measurement, three minutes without operation of automatic shutdown of the power design, maintain peak function, automatic alarm settings, torque direction showed that automatic charging, Ni-MH battery power display, storing and printing 10 test data, automatically calculating the average of storing data that can print at the scene measurement curve.
Specification :
| Model | DT5000 |
| Measuring range | 0.5-50.0 Kgf.cm 0.05-5.00 N.m 0.5-45.0 Lbf.in |
| Accuracy | ±0.5%+1 digit |
| Responsive Frequency | 600Hz |
| Support bottle size | 14-18cm |
Precise Closure Integrity Testing with the Cap Torque Tester DT5000
Ensure product safety, seal integrity, and packaging compliance with the Cap Torque Tester DT5000—a high-accuracy, digital torque analyzer engineered for pharmaceutical, food & beverage, cosmetic, and chemical industries. Designed to measure application torque (during capping) and removal torque (for consumer safety and seal validation), the DT5000 helps maintain consistent closure performance, prevent leakage, and meet ISO 11607, USP <1207>, and child-resistant packaging standards.
Engineered for Accuracy, Repeatability, and Quality Assurance
The DT5000 Cap Torque Tester features a precision load cell, ergonomic grip, and real-time digital display that captures peak torque values in N·cm, lbf·in, or kgf·cm with ±0.5% full-scale accuracy. Its auto-peak hold function ensures reliable capture of maximum torque during cap removal or application, while the adjustable jaw adapters accommodate a wide range of cap diameters (13 mm to 110 mm) and styles—child-resistant, flip-top, screw-on, and more.
- Torque Range: 0.1–50 N·cm (adjustable models up to 200 N·cm) – Covers everything from vials to large chemical containers.
- High Accuracy: ±0.5% FS – Ensures reliable QC for critical sealing applications.
- Peak Hold & Real-Time Display – Captures maximum torque automatically; large backlit LCD for easy reading.
- Interchangeable Jaw Sets – Quick-swap adapters for round, oval, and specialty caps.
- Data Logging & Connectivity – Stores 1,000+ readings; USB/Bluetooth® output for SPC and compliance reports.
- Ergonomic, Handheld Design – Lightweight (under 600 g) with non-slip grip for operator comfort.
Trusted Across Packaging and Quality Control Workflows
Inconsistent torque can lead to leaks, contamination, or failed sterility—especially in injectables, beverages, or hazardous chemicals. The DT5000 enables:
Validation of capping machine settings
Batch release testing for seal integrity
Child-resistant packaging certification
Consumer usability studies (e.g., senior-friendly opening force)
Whether you’re in a sterile fill-finish facility or a beverage bottling plant, the Cap Torque Tester DT5000 delivers the precision and traceability needed to protect your product—and your brand.
Seal with confidence. Test with precision. Comply with ease.
