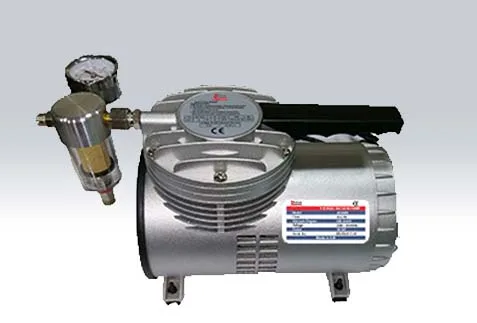

Diaphragm Vacuum Pump DV65
Features:
1. Diaphragm Pump, Oil less, no air polluted.
2. Smart and convenient to take.
3. Low noise, around 50db. (Different model have different noise level)
Specification :
Free Air Displacement(flow): 65 LPM
Pump Speed: 1450 RPM
Operating Temperature: 30 to 170°F
Vacuum Tubing Required: 3/8” OD for 3/8” ID Tubing
Voltage: 230V / 50-60 Hz
Power: 1/4 HP
Oil-Free, Low-Maintenance Vacuum for Sensitive Applications: Diaphragm Vacuum Pump DV65
Ensure clean, contamination-free vacuum generation with the Diaphragm Vacuum Pump DV65—a compact, oil-free pump engineered for laboratory, pharmaceutical, and industrial applications where oil backstreaming, chemical resistance, and quiet operation are critical. Ideal for filtration, rotary evaporation, degassing, vacuum drying, and analytical instrumentation, the DV65 delivers a reliable ultimate vacuum of ≤65 mbar (65 hPa) with maintenance-free operation and excellent chemical compatibility.
Engineered for Clean, Quiet, and Chemically Resistant Performance
The DV65 Diaphragm Vacuum Pump features a double-headed diaphragm design with PTFE-coated diaphragms and valve heads, ensuring high resistance to aggressive solvents, acids, and bases. Its oil-free operation eliminates the risk of sample contamination and reduces maintenance, while the integrated thermal overload protection and low-vibration motor ensure safe, quiet operation (≤50 dB) in lab environments.
- Ultimate Vacuum: ≤65 mbar (65 hPa) – Suitable for filtration, evaporation, and light vacuum applications.
- Oil-Free & Contamination-Free – No oil mist or backstreaming—ideal for sensitive samples and cleanrooms.
- Chemical-Resistant Fluid Path – PTFE, FKM, and aluminum components withstand corrosive vapors.
- Flow Rate: 65 L/min (2.3 CFM) – Efficient evacuation for benchtop setups and small systems.
- Low Noise & Vibration – Quiet enough for use in shared lab or office spaces.
- Compact & Lightweight (5–7 kg) – Easy to install, move, or integrate into analytical systems.
Trusted Across Laboratory and Industrial Workflows
From solvent filtration in organic synthesis and sample concentration in environmental labs to backing pumps for mass spectrometers or vacuum pick-up in electronics assembly, the DV65 provides dependable, clean vacuum without the hassle of oil changes or exhaust filters. Its robust design and low total cost of ownership make it a preferred choice for routine and high-integrity applications alike.
Whether you’re evaporating ethanol or filtering cell cultures, the Diaphragm Vacuum Pump DV65 delivers reliable, clean vacuum—exactly where you need it.
Clean vacuum. Zero oil. Maximum reliability.
