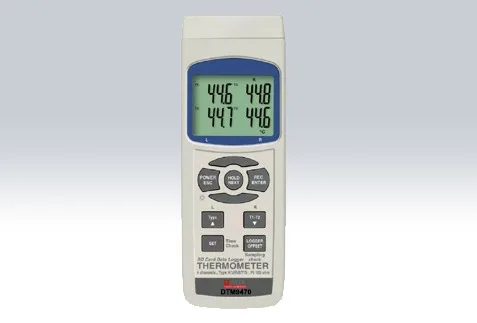

Four Channel Thermometer DTM 9470

4 channels THERMOMETER,
Real time data recorder, save the data into the SD memory card and can be download to the Excel.

Specification :

* Type K/J/R/S/E/T, Pt 100 ohm, 4 display.
* 4 channels (T1, T2, T3, T4), T1-T2, °C/°F.
* Display 4 channels Temp. at the same time.
* Type K : -100 to 1300 °C.
* Type J : -100 to 1200 °C.
* Pt 100 ohm : -199 to 850 °C.
* °C/°F, 0.1 degree/1 degree.
* Data hold, Record (max., min.),
* RS232/USB computer interface,
* Optional Type K and Pt-100 ohm Temp. probe.

Comprehensive Multi-Point Temperature Monitoring with the Four Channel Thermometer DTM 9470

Effortlessly monitor, compare, and log temperatures from up to four independent sources with the Four Channel Thermometer DTM 9470—a high-precision, industrial-grade digital thermometer designed for pharmaceutical validation, environmental mapping, food safety, HVAC diagnostics, and advanced process control. Supporting multiple thermocouple or RTD inputs, the DTM 9470 delivers lab-quality accuracy, real-time differential analysis, and robust data management in a single, portable unit.

Engineered for Multi-Zone Thermal Intelligence

The DTM 9470 Four Channel Thermometer measures temperatures from -200°C to +1370°C (range depends on sensor type) across all four channels simultaneously, with an accuracy of ±0.2% + 1°C. Its large, backlit LCD displays all four readings at once, along with differential (ΔT), min/max, average, and alarm status—enabling instant thermal profiling of ovens, incubators, cold rooms, heat exchangers, and more.

Four Independent Input Channels – Compatible with Type K, J, T, E, N, R/S/B thermocouples or Pt100/Pt1000 RTDs (model-dependent).
High Accuracy & Wide Range – ±0.2% accuracy ensures compliance with GMP, ISO, and HACCP standards.
Real-Time ΔT & Multi-Point Averaging – Analyze thermal uniformity and gradients across critical zones.
Programmable Alarms per Channel – Audible and visual alerts for high/low thresholds on any input.
Internal Data Logging (Up to 16,000 Points) – Store time-stamped records; export via USB to CSV for audit trails.
IP65-Rated, Rugged Enclosure – Resists dust, splashes, and industrial wear for lab or field use.

Trusted for Validation and Quality Assurance

From mapping temperature distribution in stability chambers and autoclaves to validating cold-chain logistics or monitoring multi-zone industrial processes, the DTM 9470 eliminates the need for multiple instruments. Its synchronized sampling ensures true comparative data—critical for FDA 21 CFR Part 11, EU GMP Annex 15, and ISO 17025 compliance.

Whether you’re a validation engineer, quality manager, or research technician, the Four Channel Thermometer DTM 9470 gives you full thermal visibility—accurately, efficiently, and reliably.

One device. Four insights. Total thermal control.
