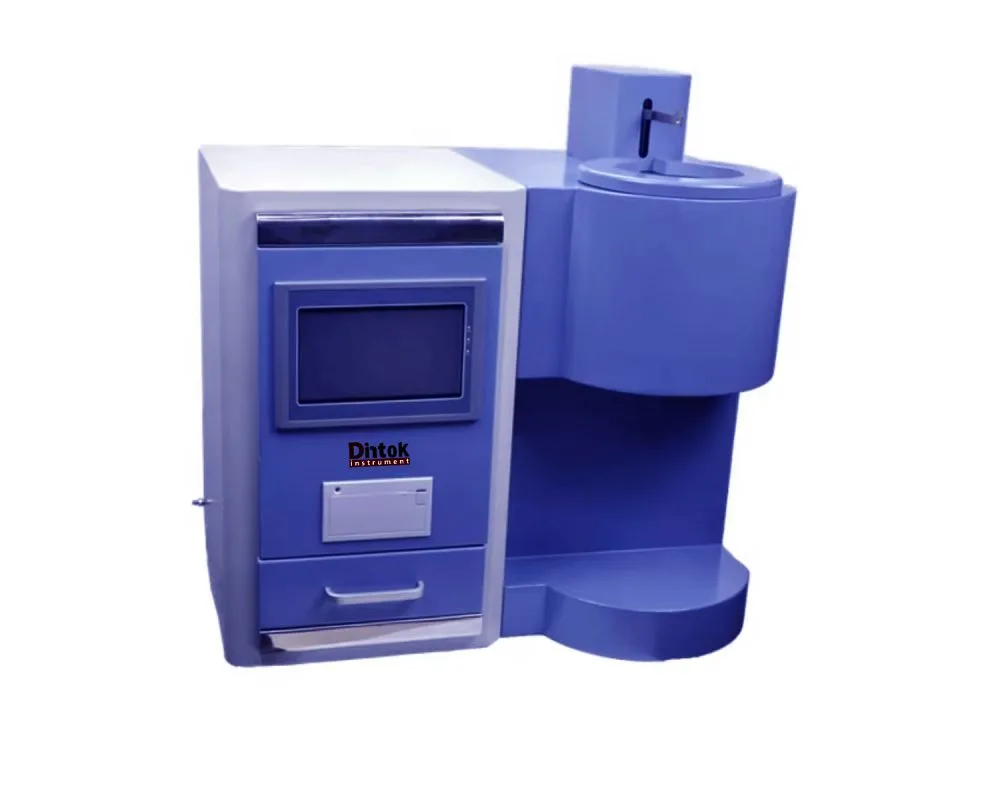

Melt Flow Index Tester DM-5000
DM-5000 Melt flow index is designed and manufactured according to the latest standards of GB and ISO; it summarizes the strengths of machine type of home and abroad. structure is compact, appearance is beautiful, operation is easy, performance is advance, quality is reliable, since it adopts the standard module combination structure, it can be upgraded and changed the type directly, in order to maintain the advance of the accurate testing machine synchronously.
DM-5000 Melt flow rate apparatus adopts PID temperature control, digital display, print out results with thermal printer, it can cut material manual or auto., has two measuring method, MFR and MVR.
DM-5000 Melt flow indexer is used to determine the melt mass-flow (MFR), the melt volume-flow rate (MFV) and the melt density of thermo resin, it is not only fit for the engineering plastics of polycarbonate, nylon and fluorine plastics, etc. whose melt temperature are higher, but also fit for the plastics tests of polyethylene, polystyrene, polypropylene, ABS resin and polyformaldehyde resin, etc. whose melt temperature are lower, it is widely applied to the fields of plastics materials, product, petrochemical, etc. It also the colleges, scientific research unit and commodity inspection department.
Specification :
| Base weight | 0.325Kg |
| Combined Load | 0.325Kgs, 1.2Kgs, 2.16Kgs, 3.8Kgs, 5Kgs, 10Kgs, 12.5Kgs, 21.6Kgs |
| Accuracy | 0.5% |
| Cleaning accessories | clear material pole |
| Measuring method | MFR MVR/DENSITY |
| Heating Power | 550W |
| Power Supply | 220V, 50Hz, Single Phrase |
| Dimension | 600mmx400mmx500mm |
| Weight | 85Kgs |
| Measuring range | 0.01-600.00 g/10min (MFR) |
| 0.01-600.00 cm/10min(MVR) | |
| 0.001-9.999 g/cm (melt density) | |
| Measure rate | 0.001S |
| Temperatur e range | 50-400C |
| Temperatur e precision | +/-0.5C resolution: 0.1C |
| Base weight | 0.325Kg |
Precise, Automated Melt Flow Testing with the Melt Flow Index Tester DM-5000
Ensure consistent quality and processability of thermoplastics with the Melt Flow Index Tester DM-5000—a high-precision, semi-automatic instrument engineered for polymer manufacturers, compounders, and quality control labs. Compliant with ASTM D1238, ISO 1133, and GB/T 3682, the DM-5000 accurately measures Melt Flow Rate (MFR) and Melt Volume Rate (MVR) to evaluate polymer viscosity, molecular weight, and batch consistency for materials like PE, PP, ABS, PC, and PVC.
Engineered for Accuracy, Repeatability, and Operator Safety
The DM-5000 Melt Flow Index Tester features a high-stability PID temperature control system (±0.1°C) across a range of 50–400°C, a precision piston with digital encoder, and an automatic cutting/weight system (on auto models) for consistent extrudate measurement. Its large touchscreen interface enables easy method setup, real-time monitoring, and automatic calculation of MFR (g/10 min) and MVR (cm³/10 min)—reducing human error and boosting throughput.
- Compliant with ASTM D1238 & ISO 1133 – Validated for all standard thermoplastics testing.
- Temperature Range: 50–400°C (±0.1°C stability) – Ensures accurate testing across material grades.
- Multiple Weight Options (0.325–21.6 kg) – Interchangeable weights for different test conditions (e.g., MFI 2.16, 5, 10, 21.6).
- Digital Encoder for MVR Measurement – Enables automatic MVR without cutting (per ISO 1133 Method B).
- Automatic Cutting & Weighing (Optional) – Integrated cutter and balance for fully automated MFR calculation.
- Compact Design with Safety Features – Overheat protection, insulated barrel, and fume exhaust port.
Trusted in Polymer Production and Quality Assurance
Melt flow index directly impacts extrusion, injection molding, and film blowing performance. The DM-5000 enables:
Incoming raw material verification
In-process quality control during compounding
Batch release testing for ISO 9001 or IATF 16949 compliance
R&D formulation development and troubleshooting
Its robust construction and compliance-ready data output make it ideal for accredited testing labs and high-volume production environments.
Whether you’re certifying a new resin grade or monitoring extruder stability, the Melt Flow Index Tester DM-5000 delivers the precision, reliability, and traceability your polymer workflow demands.
Measure flow. Control quality. Optimize processing.
