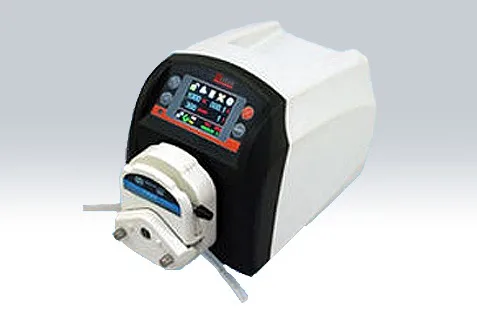

Peristaltic Pump DPP-601
DPP-601 Intelligent dispensing peristaltic pump flow range:0.006-2900ml/min.The pump adopts color LCD touch screen with intuitive and clear displaying interface, easy to operate. Mainly used for accurate measurement and distribution of fluid. If need high accuracy when dispensing, volume dispensing mode is available; if need high producing efficiency, time dispensing mode is more convenient; if want to separate fluid to number of equal parts, copy dispensing mode would be best. When working on flow mode, it is as same as intelligent flow peristaltic pump. The pump adopts intelligent temperature-control technology to reduce working noise. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Specification :
Technical parameters
• Flow range(mL/min): 0.006-2900ml/min
• Speed range(rpm): 0.1-600rpm
• Speed resolution(rpm): 0.1
• Flow accuracy: <0.5%
• Power supply: AC220V ± 10% 50Hz/60Hz(standard ) ;
AC110± 10% 50 Hz/60Hz(optional)
• Power consumption: <50W
• External control: Input level 5V,12V(standard),24V(optional)
External control analog 0-5v(standard),0-10v,4-20mA(optional)
• Communication interface: RS485 communication interface, MODBUS protocol is available.
• Operating condition: Temperature 0 ~ 40°C; Relative humidity <80%
• IP grade: IP31
• Dimensions(LxWxH): 223x150x195(mm)
• Weight: 4.9kg
| Drive type | Pump head | Channel number | Tubing(mm) | One channel flow rate (ml/min) |
| DPP-601 (ABS plastic) | DZ15 | 1 | 13#14#16#19#25#17# | 0.006~1700 |
| DZ25 | 1 | 15#24# | 0.16~1700 | |
| DT15 | 1 | 13#14#16#19#25#17#18# | 0.006~2300 | |
| DT25 | 1 | 15#24#35#36# | 0.16~2900 |
Precise, Contamination-Free Fluid Transfer with the Peristaltic Pump DPP-601
Ensure accurate, pulse-free, and sterile liquid handling with the Peristaltic Pump DPP-601—a compact, high-performance pump engineered for laboratory, pharmaceutical, environmental, and industrial applications. By isolating fluid within disposable tubing, the DPP-601 eliminates cross-contamination and enables safe transfer of aggressive chemicals, biological samples, and sterile media—making it ideal for HPLC sample loading, cell culture perfusion, water sampling, and reagent dispensing.
Engineered for Accuracy, Flexibility, and Easy Maintenance
The DPP-601 Peristaltic Pump features a brushless DC motor with digital speed control (0.1–100 rpm) and reversible flow direction, delivering flow rates from 0.01 to 600 mL/min (depending on tubing size). Its multi-channel rotor supports up to 2 independent channels, and the spring-loaded occlusion adjustment ensures consistent flow without damaging tubing. The intuitive interface includes run/pause, timer, and flow rate settings for precise dosing or continuous operation.
- Contamination-Free Operation – Fluid contacts only the tubing—ideal for sterile or hazardous liquids.
- Flow Range: 0.01–600 mL/min – Compatible with a wide selection of tubing (e.g., silicone, PharMed®, Viton®).
- Digital Speed & Timer Control – Set exact flow rates and run times for reproducible results.
- 2-Channel Capability – Process two fluids simultaneously or increase flow with parallel tubing.
- Programmable Memory – Store up to 10 user-defined protocols for routine tasks.
- Compact & Quiet Operation – Low-noise design for benchtop use in labs or cleanrooms.
Trusted Across Scientific and Industrial Workflows
From dispensing culture media in bioreactors and pumping solvents in analytical labs to dosing flocculants in water treatment or transferring PCR reagents, the DPP-601 combines reliability with versatility. Its chemical-resistant construction and easy tubing load mechanism reduce downtime, while the lack of valves or seals minimizes maintenance.
Whether you’re automating a microfluidic system or sampling groundwater, the Peristaltic Pump DPP-601 delivers dependable, clean, and accurate fluid control—every time.
Precise. Clean. Always in control.
