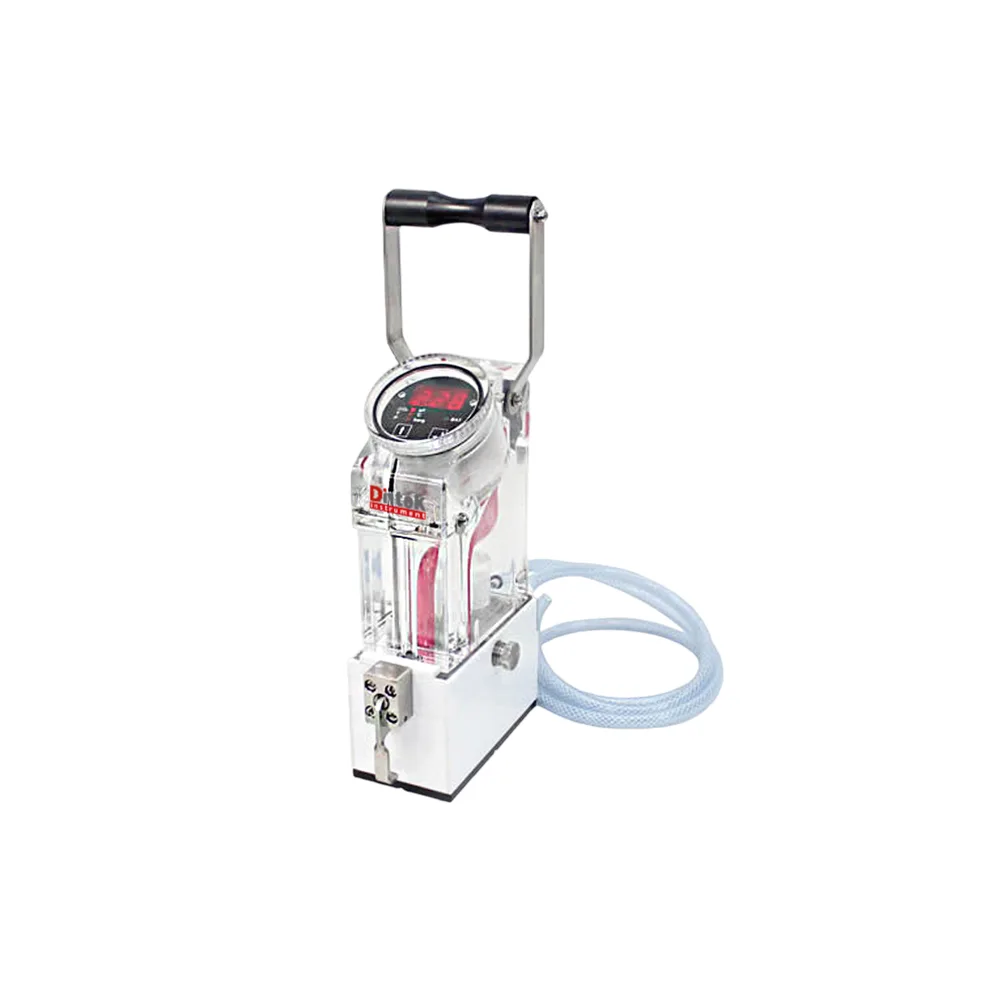

Portable CO₂ Meter (CO2-Gehaltemeter) DCM2001
For a constant quality and taste of all sorts of carbonated drinks, the critical parameter is the content of the dissolved CO2 (carbon dioxide) in the liquid.
The DCM2001 is common in breweries and soft drink industry to frequently measure the CO2 content during production. It enables a fast and accurate determination of the CO2 content in beer and carbonated drinks, either directly sampled within the production process (from e.g. tanks, pipes) of thereafter (from e.g. kegs).
The pretest sample liquid will go into the measuring volume through the vacuum pipe. Then, DCM2001 will start electrolysis process automatically with the electricity produced by platinum electrode. Then, the CO2 content of over saturation in the beer or carbonated drinks will be released until the pressure balance is achieved. By means of a slide rule, the CO2 content can be quickly determined. It only takes 2-3 minutes for one test, repetitive and durable.
Specification :
Measuring range:
CO2: 0 – 19.99 g/L
(0-1.99 gew.% ,0-9.99 % V/V）
Temperature: -10 – +60 ℃
Press: -0.5- + 4 bar
Accuracy:
CO2: +/-0.10 g/L
Temperature: +/-0.2℃
Press: +/-0.03 bar
Max. operation Press: 5bar；
Max. operation temperature: 60℃，
Measurement between 2 charging operations: up to 80 measurements
Charging time: 8 hours
Battery: 12V,200mA
Charge voltage: 110-250V/50-60Hz
Ambient temperature: 0-40℃
Dimensions: 274 X 110 X 173mm (H x W x D)
Weight: Total: approx. 3.0 kg
Accurate, On-the-Go CO₂ Monitoring with the Portable CO₂ Meter DCM2001
Ensure air quality, safety, and process control anywhere with the Portable CO₂ Meter DCM2001—a compact, high-precision carbon dioxide (CO₂) analyzer designed for environmental monitoring, HVAC diagnostics, laboratories, greenhouses, and industrial hygiene. Featuring advanced NDIR (Non-Dispersive Infrared) sensing technology, the DCM2001 delivers lab-grade accuracy in a rugged, handheld format.
Reliable CO₂ Measurement in Real Time
Whether you’re assessing indoor air quality (IAQ), verifying fermentation processes, or conducting workplace safety checks, the Portable CO₂ Meter DCM2001 provides instant, trustworthy readings from 0 to 5,000 ppm (extendable to 10,000 ppm). Its fast response time (<30 seconds) and ±30 ppm or ±3% accuracy make it ideal for professionals who demand precision in dynamic environments.
- NDIR Sensor Technology – Long-life, drift-free CO₂ detection with excellent stability and minimal maintenance.
- Backlit LCD Display – Clear readout of CO₂ concentration, temperature, and humidity (optional sensor).
- Data Logging Capability – Stores up to 10,000 readings with timestamp; download via USB for reporting and analysis.
- Portable & Ergonomic Design – Lightweight (under 300 g), pocket-sized, with a protective rubber sleeve for field use.
- Auto Calibration & Alarm – Built-in ABC (Automatic Baseline Correction) and configurable high-CO₂ alerts for safety compliance.
- Long Battery Life – Up to 24 hours of continuous operation on standard AA batteries.
Trusted Across Industries
From schools and offices monitoring ventilation efficiency to breweries optimizing fermentation, the Portable CO₂ Meter DCM2001 empowers users with actionable data. It meets ISO and CE standards for gas detection instruments and supports compliance with occupational exposure limits (e.g., OSHA, NIOSH).
Compact, durable, and engineered for real-world conditions, the DCM2001 is your go-to tool for fast, reliable CO₂ assessment—indoors or out.
Take control of your environment with a meter that’s as smart as it is portable.
