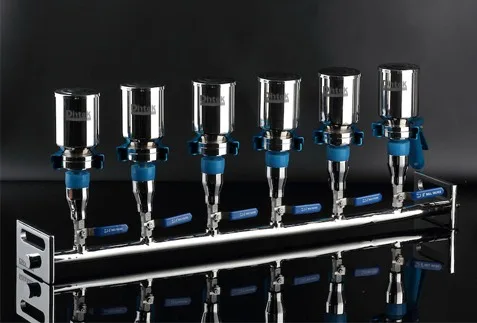

Six-branch Stainless Steel Manifolds 6BSSM
Manifolds Vacuum Filtration is used primarily in microbiological and analytical procedures that involve collecting a particulate (bacteria, precipitate, etc.) from a liquid suspension. Liquid poured into a funnel passed through a filter, which retains the particulate, and filtrate can be collected into a filter flask, directly or via a vacuum manifold. Applying vacuum reduces process time compared to gravity flow. Vacuum Filtration Holders and Manifolds are particular designed and produced for several samples filtrate at the same time. Because each filter holder have individual control valve, only one set vacuum pump can sustain the single or Multi-branch manifold filter operate together. While stainless steel nature of the Vacuum Filtration Holders and Manifolds can filtrate at 180℃ temperature ;and the high-quality extra hard glass is elegant in workmanship, and be able to bear up 200℃ range of temperature. The clamp of aluminum alloy designed rational and closed, it can make the filter bowl together with the middle filter head become an organic, and assure them airproof not to leak. Simultaneity, type 316Lstainless steel resistant to acids alkalis，and be able to bear corrosion, easy to high-temperature sterilization. Therefore, it makes the analyze result much more stabilization and trustiness.
Specification :
Components:
1. SS316L funnel (300ml or 500ml)
2. SS316L support screen (40μm)
3. Stainless steel holder ( SS 316)
4. SS316 valve
5. Clamp of aluminum alloy
High-Capacity, Industrial-Grade Filtration with the Six-Branch Stainless Steel Manifold 6BSSM
Maximize throughput in the most demanding environments with the Six-Branch Stainless Steel Manifold 6BSSM—a heavy-duty, corrosion-resistant vacuum filtration system engineered for simultaneous processing of up to six samples. Designed for pharmaceutical production, environmental field labs, chemical processing, and industrial quality control, the 6BSSM delivers unmatched durability, chemical compatibility, and operational efficiency where glass manifolds simply won’t suffice.
Engineered for Parallel Performance Under Pressure
Machined from 316L stainless steel and precision-welded for leak-free integrity, the 6BSSM Six-Branch Stainless Steel Manifold features six evenly spaced, independent filtration ports with standardized connections (e.g., ¼” NPT or quick-connect fittings) compatible with common 25 mm or 47 mm filter holders. Its central high-flow vacuum inlet ensures uniform suction across all channels, enabling consistent, rapid filtration—even with viscous or particulate-laden samples.
- 316L Stainless Steel Construction – Exceptional resistance to acids, chlorides, solvents, and high-temperature sterilization.
- Six Independent Filtration Stations – Process multiple samples in parallel with zero cross-contamination.
- Autoclavable & Steam-Sterilizable – Fully compatible with repeated sterilization at 121–135°C for GMP and aseptic workflows.
- Electropolished Internal Surfaces – Minimizes particle retention and simplifies cleaning and validation.
- Robust, Vibration-Resistant Frame – Ideal for mobile labs, pilot plants, offshore platforms, and industrial floors.
- Leak-Tight Vacuum Distribution – Reinforced central port with NPT or hose barb fitting for stable, high-flow vacuum connection.
Ideal for Regulated and Harsh-Environment Applications
The 6BSSM eliminates the risk of breakage and chemical degradation associated with glass or plastic manifolds. It’s trusted in EPA field methods, pharmaceutical cleanrooms, food & beverage QA, and petrochemical analysis—any setting requiring reliable, high-volume filtration with full compliance to safety and purity standards.
Whether you’re running batch microbial tests, filtering aggressive reagents, or conducting on-site water quality assessments, the Six-Branch Stainless Steel Manifold 6BSSM ensures speed, safety, and sample integrity—run after run.
Scale your filtration capacity without sacrificing resilience.
