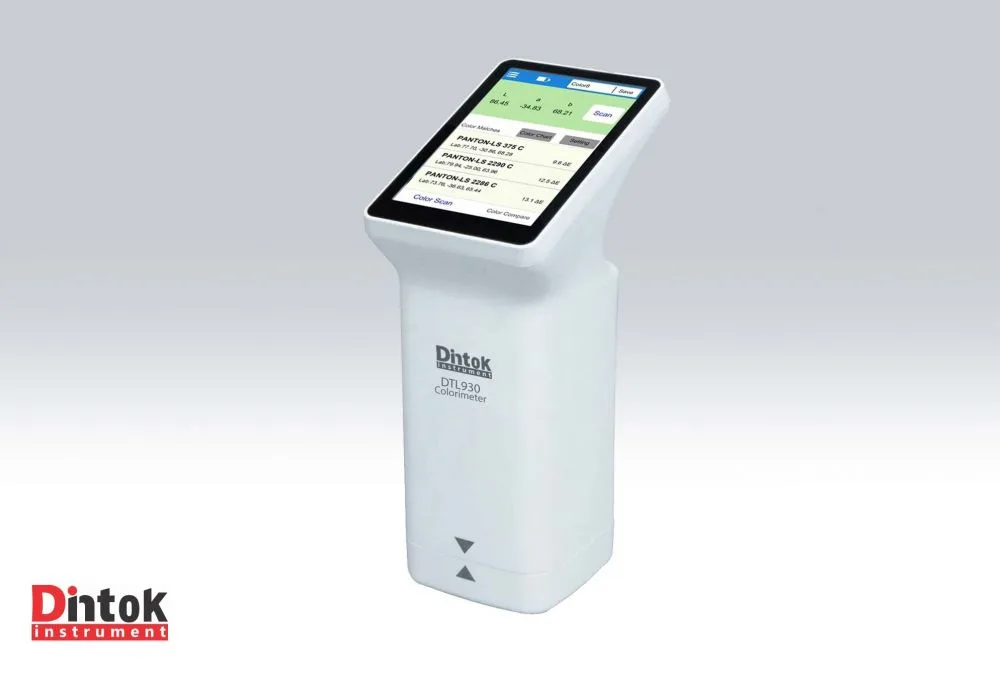

Touch Screen Colorimeter DTL 930
DTL930 is a portable multifunctional colorimeter with D/8° (SCI) optical geometry design. The color analyzer is equipped with a 3.5-inch IPS color capacitive touch screen, providing an excellent operating experience. The colorimeter integrates multiple natural color charts, and can quickly match the measured color to the closest color codes. The color difference meter also has a color difference comparison function, supports a variety of standard color addition methods, the color difference threshold can be set. The color difference formula can be flexibly selected, which can realize rapid QC testing.
Application
DTL930 usually used in paint, metal, stone, ceramic tiles and plastics industries for color measurement and management, color difference quality control. The colorimeter is illuminated by an integrating sphere diffused light source, which is very suitable for color measurement of high-gloss samples.
Specification :
| Parameter | Value |
|---|---|
| Illumination geometry | D/8, specular component include (SCI) |
| Illumination light source | Full spectrum LED light source |
| Measuring aperture | 8mm |
| Measurement conditions | Light source D65, field of view 10° |
| Measuring time | About 1s |
| Color space | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
| Color difference formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 |
| Repeatability | Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration) |
| Dimension | 86mm×62.5mm×158mm |
| Weight | About 245g |
| Power supply | Rechargeable lithium battery3.7V@4000mAh, can measure 10,000 times continuously under full charge |
| Display | 480×320 dot matrix IPS color screen |
| Language | English |
| Charging port | USB (Type-C) |
| Operating temperature range | 0~45℃, 0~85%RH (no condensation) |
| Storage temperature range | -25~55℃, 0~85%RH (no condensation) |
Intuitive, High-Accuracy Color Measurement with the Touch Screen Colorimeter DTL 930
Achieve fast, reliable, and objective color assessment with the Touch Screen Colorimeter DTL 930—a compact, portable instrument engineered for quality control in paints, coatings, plastics, textiles, food, printing, and cosmetics. Featuring a 5-inch full-color touchscreen, d/8° (diffuse illumination, 8° viewing) geometry, and compliance with CIE, ASTM D2244, and ISO 7724 standards, the DTL 930 delivers precise color data in multiple scales—including L*a*b*, L*C*h°, XYZ, Yxy, and Whiteness/Yellowness Index—right at the point of need.
Engineered for Simplicity, Precision, and Workflow Efficiency
The DTL 930 Touch Screen Colorimeter uses a pulsed xenon lamp and high-resolution spectrometer to measure reflectance across 400–700 nm, ensuring consistent results under varying ambient light. Its SCI (Specular Component Included) and SCE (Specular Component Excluded) modes allow users to evaluate both color formulation and visual appearance. The intuitive interface enables instant pass/fail analysis against stored standards, batch comparison, and color difference (ΔE) calculation.
- d/8° Geometry with SCI/SCE Modes – Meets international standards for industrial color measurement.
- High Repeatability: ΔE* ≤ 0.04 – Ensures batch-to-batch consistency in production.
- Large 5″ Touchscreen with Onboard Library – Store 1,000+ standards; perform real-time ΔE comparisons.
- Multiple Aperture Sizes (4 mm / 8 mm) – Ideal for small samples, textured surfaces, or powders.
- Bluetooth®, USB, and Wi-Fi Connectivity – Transfer data to mobile apps, PCs, or cloud-based QC systems.
- Rechargeable Battery (5,000+ Measurements) – Full-day operation for lab or production floor use.
Trusted Across Color-Critical Industries
From matching automotive paint and verifying textile dye lots to ensuring brand-color consistency in packaging or assessing food freshness, the DTL 930 eliminates subjective visual evaluation. Its compliance with global color standards ensures data compatibility across supply chains and supports ISO 9001, GMP, and brand guideline adherence.
Whether you’re a formulator, QC inspector, or production manager, the Touch Screen Colorimeter DTL 930 puts professional-grade color control in the palm of your hand—fast, accurate, and effortless.
See color objectively. Control it confidently.
