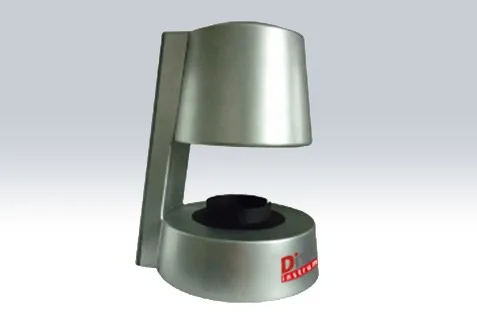

Automatic Colony Counter CC3510A
Application:
CC3510A automatic colony counter is widely used in food, beverage quality and health inspection, the dairy industry, hospitals, cosmetics, microbiology laboratory testing among the pharmaceutical industry, etc., suitable for microbial colony counts and analysis, be able to complete all of the Colonies reading type, CC3510A user interface is simple and easy to use, is a modern microbiological testing laboratories advanced and efficient colony counter.
Features:
1. Can choose 3,5,10 million true color high-resolution CCD camera lens, according to demand and hardware to ensure the accuracy and reliability of the experimental data results.
2. Open-platform design makes operation more convenient and faster.
3. Its bottom LED light design can avoid colony image interference caused by external light shed on the open platform.
4. The user-friendly operating interface, simple, easy-to-use, laboratory personnel can quickly start to master the operation of experimental colony counting.
5. Quickly read the the number of colonies incubated by methods such as spread, spiral, coating, pour plate etc. , saving a lot of manpower and time thanks to the intelligent recognition technology. It can complete the counting of an ordinary plate within one second.
6. Adopt encrypted USB-key which guarantees data security and database management.
7. Record traceable, it automatically process data and store the image and retrieval recorded data is convenient.
8. Can distinguish eight different colors colony, enhancing accuracy;
9. Can manually add and delete the colonies, to correct the statistical results.
10. Can directly set the non-counting regions to remove area that not want to count, which facilitate accuracy.
Specification :
| Items | Parameters |
| Camera | Color high definition CCD |
| CCD resolution (Pixels) | 3,000,000, 5,000,000, 8,000,000, three sizes optional |
| Counting software | Smart counter |
| Colony size resolution | >0.1mm |
| Colony color recognition | 8 colors |
| Applicable method | Spread plate, pour plate, membrane filter, spiral plate |
| Counting speed | 300,less than 3 seconds |
| Light | Long life dual LCD light source |
| Working temperature | (0~50)°C |
| Material | ABS plastic |
| Petri dish | 90mm and 55mm standard |
| Host dimension | 290×260×380mm |
| Weight | 3kg |
| Power supply | AC110~220V , 50Hz |
| Power | 20W |
Fast, Accurate Microbial Enumeration with the Automatic Colony Counter CC3510A
Streamline microbiological testing and eliminate manual counting errors with the Automatic Colony Counter CC3510A—a smart, high-resolution digital system engineered for clinical labs, food safety, pharmaceutical QC, and environmental monitoring. Using advanced image analysis and detection, the CC3510A instantly counts and classifies colonies on Petri dishes (standard 90 mm or 55 mm) with exceptional accuracy, supporting compliance with ISO 4833, USP <61>, GB 4789.2, and FDA BAM methods.
Engineered for Speed, Precision, and Laboratory Efficiency
The CC3510A Automatic Colony Counter features a 5-megapixel scientific-grade camera, adjustable LED ring lighting (top and bottom), and a motorized XY stage for seamless scanning of multiple plates. Its intelligent software distinguishes true colonies from debris, handles clustered or overlapping colonies, and allows manual correction when needed. Results—including colony count, size distribution, and images—are generated in seconds and stored with full traceability.
- Count Range: 1–1,000+ Colonies per Plate – With >98% accuracy vs. manual counting.
- Multi-Plate Batch Processing – Save and compare results from multiple samples in one session.
- GLP/GMP-Compliant Data Management – Stores images, counts, timestamps, and user IDs; exports to CSV/PDF.
- Touchscreen Interface + PC Software – Operate standalone or integrate with LIMS via USB/Ethernet.
- Calibration & Validation Ready – Includes test grids and meets 21 CFR Part 11 requirements (with software option).
Trusted Across Regulated Microbiology Workflows
From verifying sterility in pharmaceuticals and monitoring hygiene in food production to assessing water safety and clinical diagnostics, the CC3510A reduces subjectivity, improves throughput, and ensures audit-ready documentation. Its ability to archive high-resolution images provides permanent records for investigations, audits, or regulatory submissions.
Whether you’re processing dozens of plates daily or validating aseptic processes, the Automatic Colony Counter CC3510A transforms a tedious, error-prone task into a fast, reliable, and compliant workflow.
Count smarter. Document everything. Trust your data.
