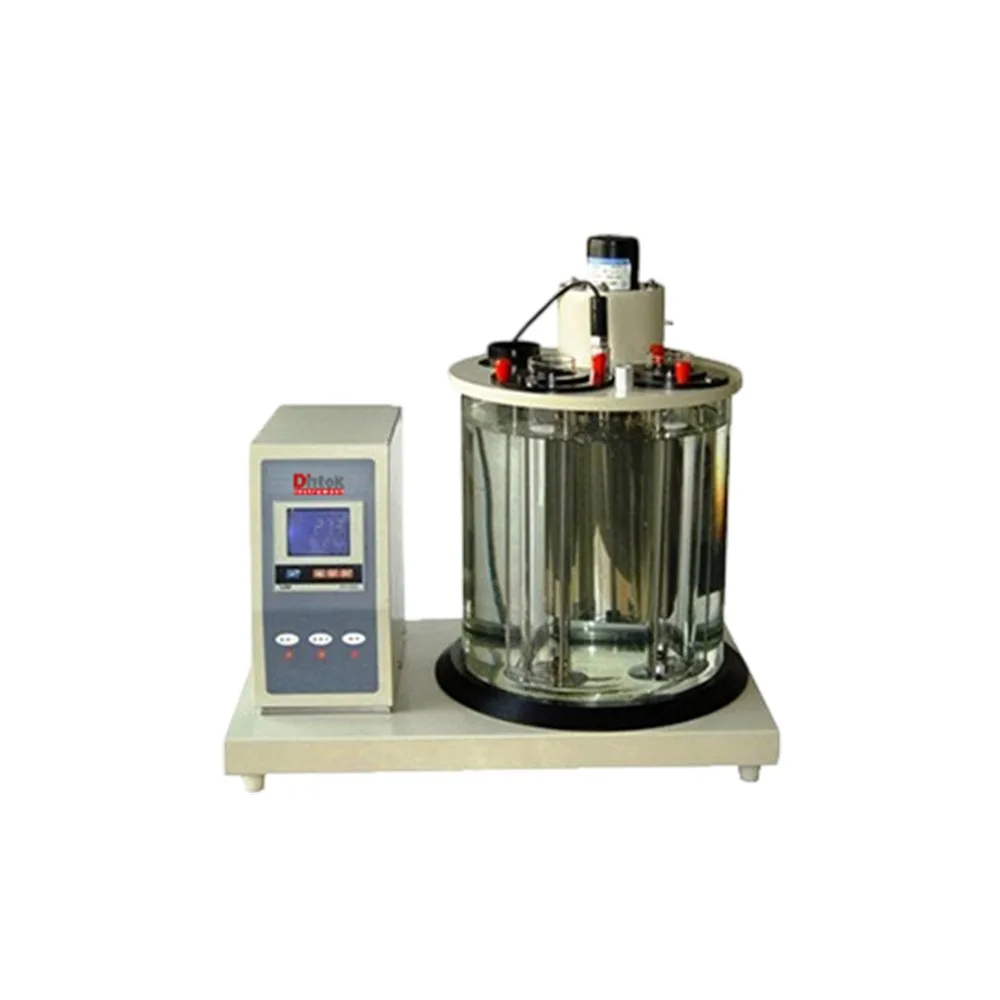

Density Tester DDT-241
The instrument is designed and made as per “Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter Methods)”. It is suitable to determine density of liquid petroleum products using a densimeter.
Specification :
Working condition:
1. Ambient temperature: -10°C ～ +40°C, the temperature should not change for more than ±2°C
2. Relative humidity: ≤85％
3. The instrument should be placed on a flat workbench during operation and please try your best to reduce air convection during a test.
4. If the instrument is not used for a long time, please store it at a dry place.
Technical parameters
1. Power supply: AC 220V±10％, 50 Hz
2. Cubage of bath: Ф300×380 mm
3. Heating power: 700 W, 1000 W
4. Temperature controller:
(1) Temperature controlling range: 0°C～100°C
(2) Temperature controlling accuracy: ±0.2°C
(3) Temperature sensor: Industrial platinum resistance, Pt100
5. Thermometer: total immersion mercury thermometer with scale division of 0.2 °C
Precise, Fast Density Measurement with the Density Tester DDT-241
Achieve laboratory-grade density and specific gravity results in seconds with the Density Tester DDT-241—a high-precision digital density meter engineered for petroleum, chemical, pharmaceutical, and food & beverage laboratories. Utilizing the oscillating U-tube principle, the DDT-241 delivers exceptional accuracy (±0.0001 g/cm³) for liquids ranging from light solvents to viscous oils, fully compliant with ASTM D4052, ISO 12185, and IP 557 standards.
Engineered for Speed, Accuracy, and Simplicity
The DDT-241 Density Tester measures density by detecting the resonant frequency of a filled U-shaped glass tube—providing results in under 2 minutes with minimal sample volume (1–2 mL). Its integrated Peltier temperature control maintains the sample at a precise, user-selectable temperature (typically 15°C, 20°C, or 25°C), ensuring standardized, repeatable measurements regardless of ambient conditions.
- High Accuracy: ±0.0001 g/cm³ – Suitable for custody transfer, formulation, and QC applications.
- Automatic Temperature Control (±0.02°C) – Built-in Peltier system eliminates need for external water baths.
- Wide Measurement Range: 0–3 g/cm³ – Handles gasoline, ethanol, acids, syrups, and heavy oils.
- Calculates Multiple Parameters – Simultaneously displays density, specific gravity, API gravity, and concentration (for pre-programmed solutions).
- Large Color Touchscreen & Data Management – Stores 1,000+ results; USB export to CSV for reporting.
- Easy Cleaning & Low Sample Volume – Integrated flush port and <2 mL sample requirement reduce waste and cross-contamination.
Trusted Across Regulated Industries
From verifying fuel blending accuracy and ethanol content to ensuring syrup consistency in beverages or solvent purity in pharma, the DDT-241 replaces hydrometers and pycnometers with a fast, automated, and traceable solution. Its compliance with international standards makes it ideal for ISO 17025 labs, refineries, and quality control departments requiring auditable, high-throughput analysis.
Whether you’re certifying jet fuel or developing a new chemical formulation, the Density Tester DDT-241 delivers the precision and efficiency your workflow demands.
Measure density—accurately, instantly, effortlessly.
