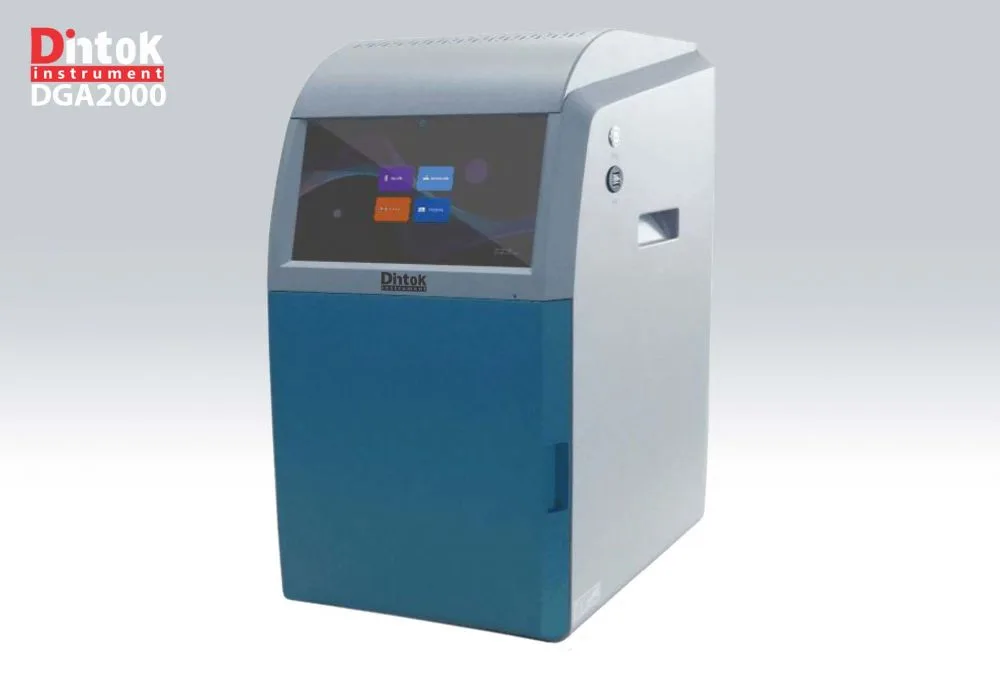

Gel Documentation System DGA2000
Automatic Gel Imaging and Analysis System is a highly integrated and fully automated gel imaging system, system interface is simple and practical, the main interface has shooting button and time control to guide the user, it is very easy to operate, no need to have manual and tedious debug, it is your best choice.
Features:
High-resolution CCD camera with less noise, High sensitivity , High resolution, f 1.2 flux, 6 times zoom, three variable electric dynamic focus lens and nucleic acid dye filter.
Specialized overlay glue cutting filter, compared with the traditional one, it has many advantages, easy to operate, can prevent UV and blue light damage, no need to operate in dark room, work very well under strong light condition The white light sample plate is used for SDS- PAGE glue samples shooting .
It can be used to do nucleic acid test for various fluorescent dyes, such as EB, SYBRGold, SYBR Green, SYBR Safe,Gel Red Gel GreenTexas, Red, Fluorescein marked DNA/ RNA
Specification :
| Model | DGA2000 |
| Pixel | 4000×3000 (12.0MP) |
| Exposure Time | 1ms-60mins |
| QE value | High QE: >69% |
| Binning | 1X1,2X2,4X4 |
| Bit Depth | 16 bit（0 – 6553） |
| OD | ≥4.8 OD |
| Lens | Motorized 11.5-69mm, F=1:1.2 |
| Trans-UV | 302nm, optional trans-blue |
| Epi-White | LED |
| Trans-White | UV to white sample plate |
| Epi-UV | 254nm, 302nm,365nm for option |
| Filters | 590nm, Others for option |
| UV area | 21×21cm, 21×26 optional |
| Timing off | 1〜60 mins |
| Touch Screen | 13.3 inch touch screen. |
High-Sensitivity Imaging and Analysis with the Gel Documentation System DGA2000
Capture, analyze, and document nucleic acid and protein gels with exceptional clarity using the Gel Documentation System DGA2000—a versatile, research-grade imaging platform engineered for molecular biology, biochemistry, and life science laboratories. Equipped with a high-resolution CCD camera, UV/white/blue light transilluminators, and advanced analysis software, the DGA2000 enables precise visualization of DNA, RNA, and protein bands stained with ethidium bromide, SYBR® Safe, Coomassie, silver stain, and more—all in compliance with GLP and publication-ready standards.
Engineered for Sensitivity, Safety, and Workflow Efficiency
The DGA2000 Gel Documentation System features a 5-megapixel scientific-grade CCD camera with manual and auto-exposure control, delivering high dynamic range and low-noise images even for faint bands. Its multi-mode illumination includes:
302 nm UV transilluminator (with optional 365 nm for reduced DNA damage)
Blue light (470 nm) for safe, high-sensitivity SYBR® dye imaging
White light epi-illumination for Coomassie/silver-stained gels and membrane documentation
A motorized lens and UV-blocking safety hood ensure sharp focus and user protection during operation.
- High-Resolution Imaging – Detect bands down to <0.1 ng DNA with low background noise.
- Quantitative Analysis Software – Includes lane/band detection, molecular weight estimation, densitometry, and % purity calculation.
- Multi-Application Support – DNA/RNA gels, protein gels, western blots, colony plates, and TLC plates.
- GLP-Compliant Data Management – Automatic time-stamping, user ID, image annotation, and export to TIFF/PDF/CSV.
- Compact, Darkroom-Free Design – Integrated dark chamber eliminates need for external darkroom.
- Optional Accessories – Gel cutter, filter wheels, and chemiluminescence module available.
Trusted in Academic, Clinical, and Biotech Laboratories
From genotyping and PCR validation to protein expression analysis and quality control of purified nucleic acids, the DGA2000 streamlines post-electrophoresis workflows with publication-quality results. Its intuitive software reduces analysis time, while the safety-focused design minimizes UV exposure—making it ideal for core facilities, teaching labs, and regulated environments.
Whether you’re confirming CRISPR edits or validating RNA integrity, the Gel Documentation System DGA2000 delivers the sensitivity, accuracy, and documentation rigor your research demands.
See every band. Quantify with confidence. Publish with clarity.
