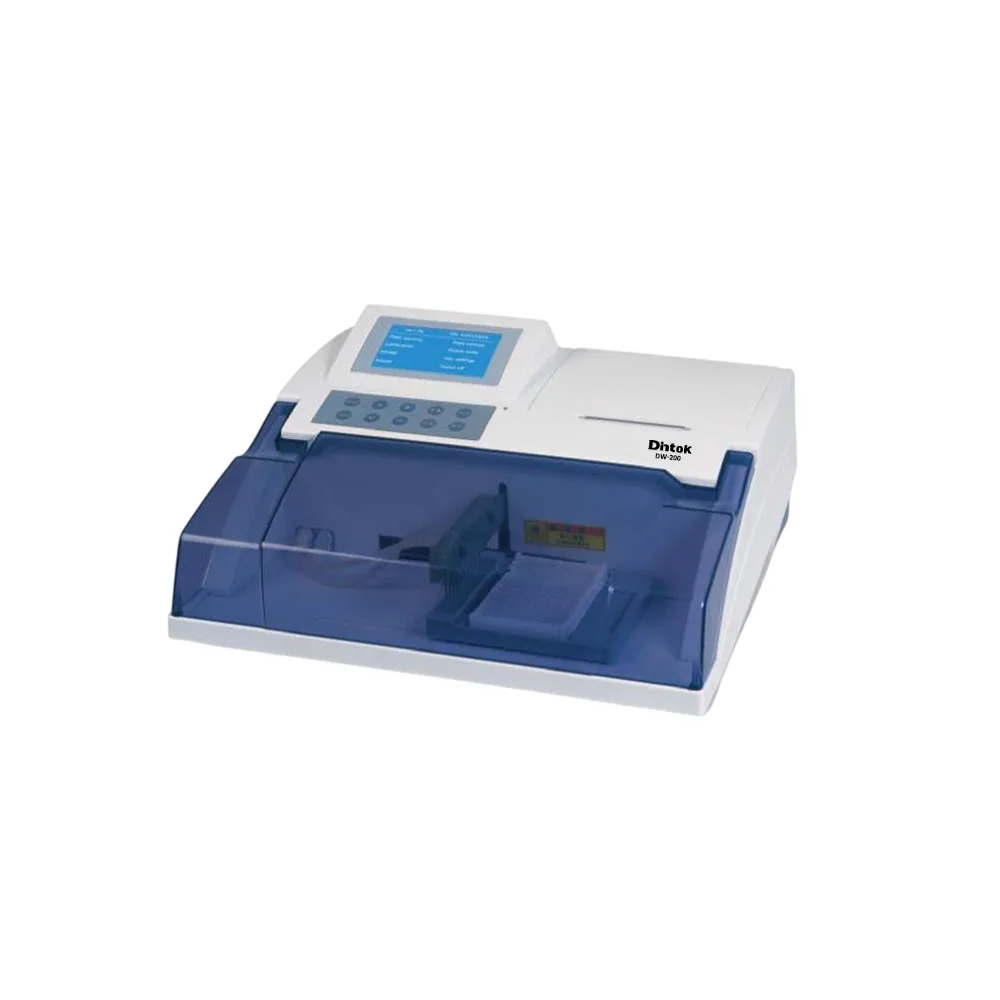

Microplate Washer DW-200
- User friendly operation system with large LCD display
- Washes flat, U and V-bottom strips and plate
- 12-way or 8-way manifold, automatic and manual positioning
- Large memory, up to 100 wash protocols can be programmed
- Multi-channel, 1 or up to 3 for wash, 1 for rinse and 1 for waste
- Plate shaking function, time and speed are adjustable
- Two 96-well plate incubation positions (optional)
- Liquid Level detection and alert function
- Easy maintenance
Specification:
| Plate Mode | 96-/48-well plate or strip |
| Residual Volume | <1µl |
| Washing Volume | 10~3000µl/well, 1µl by step |
| Washing Cycle | Maximum 99 cycles |
| Strip Washing | 1 to 12 strips programmable |
| Soaking Time | 0~24hours |
| Shaking Time | 0~24hours |
| Display | Large LCD |
| Wash Channels | 5 channels, 1 or up to 3 for wash, 1 for rinse and 1 for waste |
| Memory | 100 washing protocols |
| Interface | RS-232 |
| Power Supply | AC 110/220V±10%, 50~60Hz |
| Net Weight | 13 Kg |
| Dimension | 450MMx390MMx190MM |
Efficient, Reliable Plate Washing for ELISA and Cell-Based Assays: Microplate Washer DW-200
Streamline your immunoassay and high-throughput screening workflows with the Microplate Washer DW-200—a compact, user-friendly instrument designed for consistent, residue-free washing of 96-well microplates. Ideal for clinical diagnostics, research labs, and quality control environments, the DW-200 ensures effective removal of unbound reagents during ELISA, cell washing, and other microplate-based protocols—improving assay sensitivity and reproducibility.
Engineered for Simplicity, Consistency, and Everyday Use
The DW-200 Microplate Washer features an intuitive control panel, programmable wash cycles, and a precision 8- or 12-channel dispensing/aspiration head that delivers uniform flow across all wells. It supports multiple wash modes—including aspiration only, dispense only, or full wash cycles—with adjustable volume, soak time, and number of cycles. The system uses standard tubing and is compatible with common buffers and mild detergents.
- Compatible with Standard 96-Well Flat, U-, and V-Bottom Plates – Fits most microplate formats.
- Programmable Wash Protocols – Set volume, cycle count, soak time, and aspiration height for repeatable results.
- Gentle Yet Thorough Washing – Minimizes cross-contamination and cell detachment in sensitive assays.
- Compact Benchtop Design – Saves space in clinical and research labs.
- Easy Maintenance & Quick Setup – Tool-free head exchange; self-priming pump; waste level indicator.
- Low Carryover & High Recovery – Optimized fluidics for clean, consistent plate processing.
Trusted in Diagnostic, Academic, and Biotech Labs
From routine infectious disease ELISAs and allergy testing to cytokine assays and cell-based screening, the DW-200 enhances data quality by ensuring complete removal of unbound antibodies, antigens, or media—reducing background noise and improving signal-to-noise ratios. Its reliability and ease of use make it ideal for labs processing dozens to hundreds of plates per week.
Whether you’re running patient samples or validating drug candidates, the Microplate Washer DW-200 delivers consistent, hands-free plate washing—so you can focus on results, not rinsing.
Wash with confidence. Boost assay performance. Simplify your workflow.
