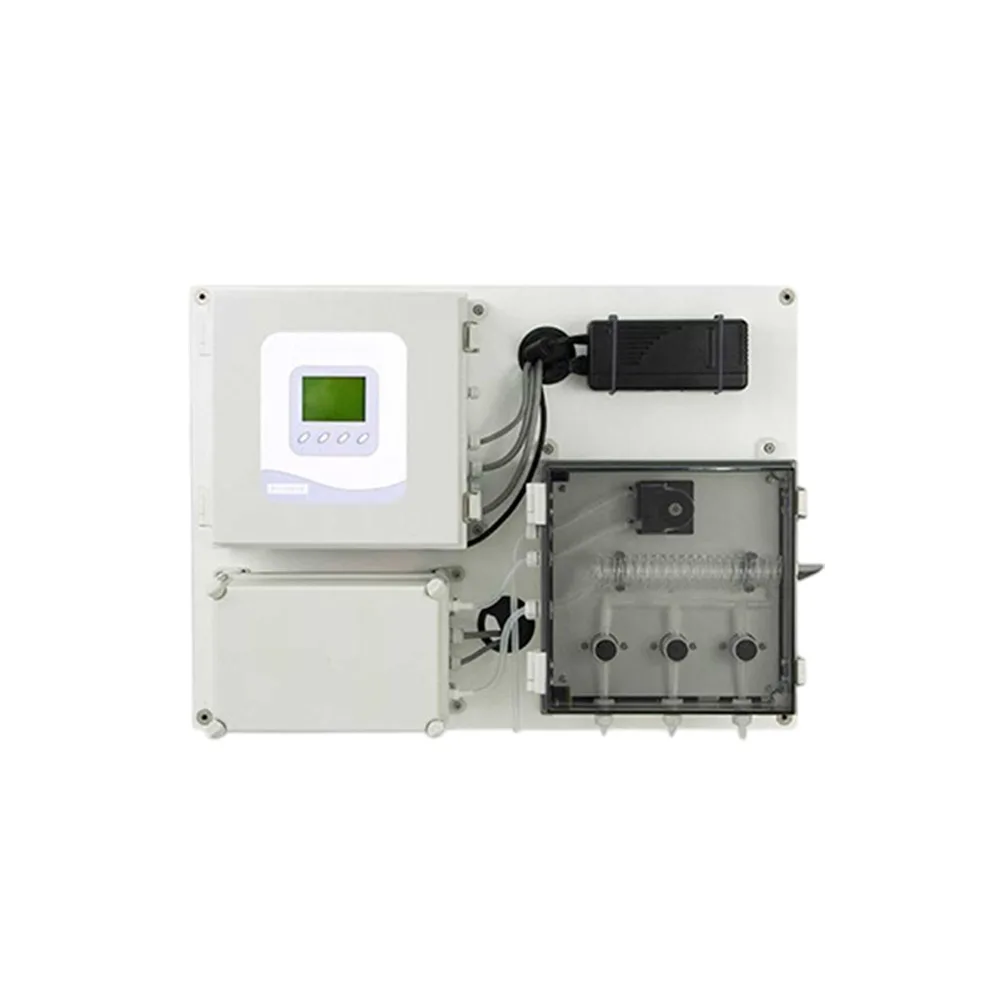

Organic Analyzer / BOD SOMP 666
OnLine instrument for direct physical measurements and determination in UV of organics material level (COD, BOD, TOC), total suspended solids (TSS), and nitrates (N03). It controls and also detects undesirable substances (pesticides, aromatic hydrocarbons).
Fast reading & low maintenance system, IP54, water-resistant housing with fluids separated from electronics
1 to 4 programmable channels for samples, automatic cleaning & drift compensation, intelligent integrated dilution
Both qualitative and quantitative reading, UV Pro software interface
Specification :
Dintok (Gmbh) designed a Compact Alarm System Called STAC dedicated for this survey.
Using an innovative and patented technology.
- Estimates the Organic Matter(COD,BOD,TOC), the TSS level and measures the nitrate concentration.
- Checks and detects undesirable substances (Pesticides, aromatic hydrocarbons.)
PRINCIPLE
Most of macro pollutants and mainly Organic Matters, TSS and Nitrates absorb in a specific way in the UV light spectrum.
By measuring the sample absorbance in the specific area of the UV spectrum, the Smart records the spectral profile of the sample, a true numerical picture of the water quality.
ADVANTAGES
- Physical method with almost no consumable
- Very fast reading (<5 minutes)
- Easy and low maintenance
- Both quantitative and qualitative reading
- Build in separates enclosures with aqueous sample isolated from electronics
- Fitting with most of tele-transmitable systems
- Fully automatic
Detector
- UV diode array spectrophotometer (204-323 nm) without any moving parts
- Easy to maintain, 50 mm quartz cuvette
- Pulsed deuterium source for a far UV high energy
Sampling
- Automatic and sequential sampling circuit rinsing and cuvette cleaning
- Programmable automatic sampling from 5 to 30 minutes
- Pinching valves Ø 8 mm for TSS reading without filtration
Date transfer
- Current loops
- RS 232
- UV-Pro software for data storage and UV spectrum management
MEASURING RANGE
Correlation with Organic Matter:
- COD: 0.2 to 8750 mg/L
- BOD: 0.05 to 8750 mg/L
- TOC: 0.1 to 7500 mg/L
- TSS: 0.5 to 2500 mg/L
Nitrates measurement
- NO3 : 0.1 to 1000 mg/L
Undesirable substances detection:
- Components: 2,4D,DIURON,CHLORPYRIPHOS,ATRAZINE 200,AMINOTRIAZOLE,PARAQUAT,DIAZINON,AZULENE,HEXAZINONE,DIQUAT,BENTAZONE,AROMATIC HYDROCARBONS
Precise, Automated BOD Testing with the Organic Analyzer / BOD SOMP 666
Streamline wastewater analysis and environmental monitoring with the Organic Analyzer / BOD SOMP 666—a high-precision, automated biochemical oxygen demand (BOD) analyzer engineered for laboratories, municipal treatment plants, and industrial compliance teams. Combining ISO-certified performance with intelligent automation, the SOMP 666 delivers accurate, reproducible BOD5 results while minimizing manual labor and human error.
Advanced BOD Analysis, Simplified Workflow
The Organic Analyzer / BOD SOMP 666 uses pressure-sensing respirometry to continuously monitor oxygen consumption in real time—eliminating dilution errors and manual titration. Ideal for testing sewage, industrial effluents, surface water, and process streams, it meets ISO 5814 and APHA Standard Methods 5210B for reliable regulatory reporting.
- 6-Channel Simultaneous Testing – Process up to 6 samples in parallel with independent monitoring for maximum throughput.
- Auto-Temperature Control – Maintains precise 20°C incubation for full 5-day BOD5 compliance.
- Digital Data Logging – Stores full test curves, timestamps, and final BOD values; export via USB or optional software.
- Self-Diagnostic System – Alerts for leaks, temperature deviations, or sensor issues to ensure data integrity.
- Low Maintenance Design – Reusable glass bottles and minimal consumables reduce long-term costs.
- User-Friendly Interface – Clear LCD display with intuitive menu for quick setup and real-time monitoring.
Why Environmental Labs Choose the SOMP 666
Unlike manual BOD methods that are time-consuming and prone to variability, the Organic Analyzer / BOD SOMP 666 provides lab-grade accuracy with minimal operator intervention. Its robust construction and stable sensor technology ensure consistent performance across hundreds of cycles—critical for environmental compliance, research, and quality control.
Whether you’re monitoring discharge limits or optimizing treatment efficiency, this analyzer delivers trustworthy data you can act on—faster and with greater confidence.
Ensure regulatory compliance, reduce labor costs, and enhance data reliability with the definitive Organic Analyzer / BOD SOMP 666.
