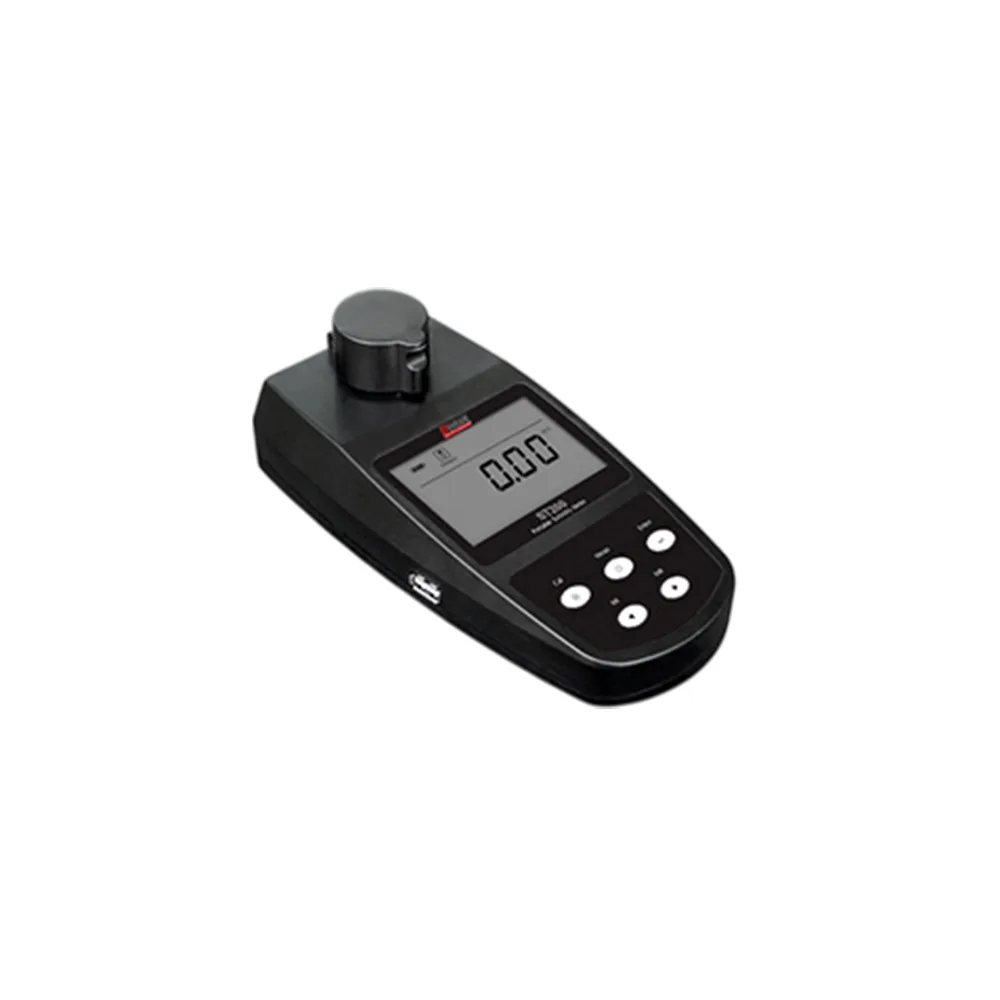

Portable Turbidimeter ST 200
High performance portable turibidimeter, 2 to 5 points calibration, selectable 4 turbidity units. The meter is suitable for process control and field use.
Features:
• Easy-to-use portable turbidimeter is equipped with a standard carrying case.
• 2 to 5 points calibration using the Formazin Standards.
• Selectable four turbidity units, including the NTU (Nephelometric Turbidity Unit), FNU
(Formazine Turbidity Unit), EBC (European Brewery Convention) and ASBC (American
Society of Brewing Chemists).
• Single measurement mode automatically recognizes the stable reading.
• Continuous measurement mode that can used for indexing and matching the sample vials.
• Auto-Power Off helps user effectively conserve battery life.
• System menu allows setting the 7 parameters, including the date and time, resolution, etc.
• Reset feature automatically resumes all settings back to factory default settings.
• Expanded memory stores and recalls up to 100 readings.
• Stored data can be transferred into computer by USB communication interface.
• Multi-mode power scheme (battery, power adapter, USB port) ensures that use the meter
smoothly.
Specification :
| Measurement Method | ISO 7027 nephelometric method (90°) |
| Measurement Range | 0~1100 NTU/FNU, 0~275 EBC, 0~9999 ASBC |
| Resolution | 0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~1100 NTU) |
| Accuracy | ±2% (0~500 NTU), ±3% (501~1100 NTU) |
| Calibration Standards | 0.02, 10, 200, 500, 1000 NTU or User-Defined |
| Light Source | Infrared-emitting diode (850 nm wavelength) |
| Detector | Silicon Photodiode |
| Stray Light | < 0.02 NTU |
| Sample Vials | 60(H)×25(Dia.)mm |
| Power Off | Manual or Automatic (15 minutes) |
| Memory | Stores up to 100 data sets |
| Output | USB Communication Interface |
| Operating Temperature | 0~60°C |
| Ip | 65 |
| Power Requirements | 1×9V Battery |
| Dimensions | 180(L)×85(W)×70(H)mm |
| Weight | 300g |
Accurate, Reliable Turbidity Measurement for Water Quality Assurance
Portable Turbidimeter ST 200 ensure compliance and protect public health with our range of turbidimeters—precision instruments designed to measure the cloudiness or haze in water caused by suspended particles. Essential for drinking water treatment, wastewater monitoring, environmental testing, and industrial process control, our turbidimeters deliver fast, repeatable results in compliance with EPA Method 180.1, ISO 7027, and USEPA GLI standards.
Engineered for Clarity and Compliance
Our turbidimeters utilize either nephelometric (90° scatter) or ratio (multi-angle) optical technology to detect particles as small as 0.1 µm, providing accurate readings from 0.01 to 1,000 NTU/FNU. Designed for both lab and field use, models range from portable handheld units to benchtop and online process analyzers—each built for stability, ease of use, and minimal maintenance.
- Compliant with EPA 180.1 & ISO 7027 – Choose infrared (ISO) or white light (EPA) optics based on regulatory needs.
- Wide Measurement Range – From ultra-low turbidity in drinking water (<0.1 NTU) to high-solids wastewater.
- Automatic Calibration & Diagnostics – One-button calibration with standards; alerts for bubbles, fouling, or lamp errors.
- Durable Designs – IP67-rated portables for field use; rugged benchtops for daily lab analysis.
- Data Management – GLP-compliant logging, timestamped results, and USB/Bluetooth export on select models.
- Low Maintenance & Long Lamp Life – LED light sources ensure stability and reduce consumable costs.
Trusted Across Water and Environmental Sectors
From municipal water plants verifying filter performance to environmental consultants assessing stormwater runoff, our turbidimeters support regulatory reporting, process optimization, and early contamination detection. Their intuitive interfaces require minimal training, while high repeatability ensures confidence in every reading.
Whether you need spot-check capability or continuous monitoring, our turbidimeters provide the accuracy, reliability, and compliance assurance your water quality program depends on.
See clearly. Measure confidently. Protect water integrity.
