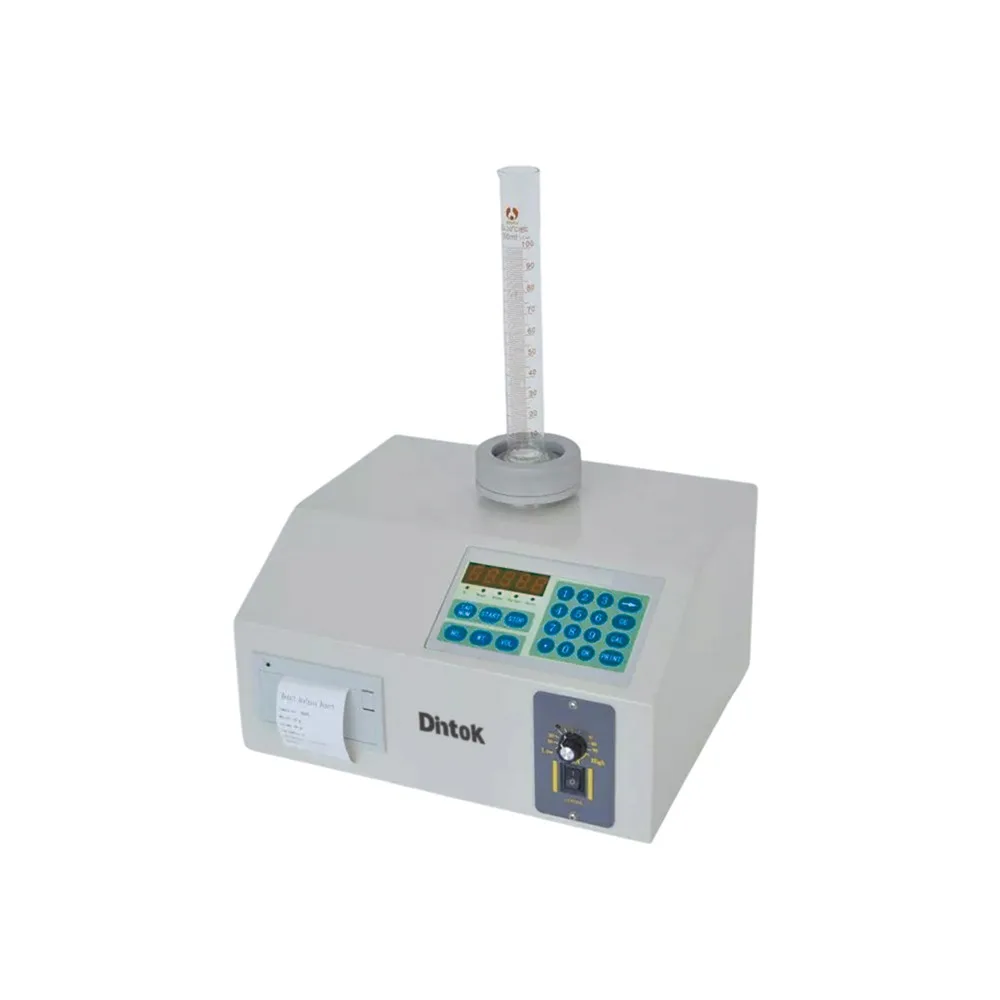

Powder Tap Density Tester DPD1001
A product used to measure the tapped density of powder as well as granular or flake materials using standard and repeatable methods. The standardized tapped density analysis is performed using the DPD series in accordance with international standards.
Applications in non-metallic powders and in powder metallurgy (P/M) – ISO 3953:1993 Metallic powders – Determination of tapped density – ASTM B 527 Standard test method for determining the tapped density of powders and metal compounds. Applications in pigments and additives – ISO 787/11 General methods of test for pigments and extenders – Part 11 Determination of tapped volume and apparent density after tapping. In addition, the HY-100 tapped density testing device complies with international standards such as
specification :
Accurate, Automated Powder Compaction Analysis with the Powder Tap Density Tester DPD1001
Ensure consistent powder characterization for pharmaceuticals, chemicals, food, and battery materials with the Powder Tap Density Tester DPD1001—a precise, programmable instrument engineered to determine tap density and compressibility in full compliance with USP <616>, EP 2.9.34, ISO 3953, and ASTM B527. By mechanically tapping a graduated cylinder containing a powder sample, the DPD1001 measures volume reduction to calculate tap density (g/mL) and Hausner ratio, critical parameters for flowability, blend uniformity, and tablet compression.
Engineered for Reproducibility, Compliance, and Ease of Use
The DPD1001 Powder Tap Density Tester features a motorized tapping mechanism with adjustable drop height (3 mm or 14 mm per USP/EP), programmable tap count (1–9999 taps), and dual-cylinder capacity for parallel testing. Its digital counter ensures exact replication of standard methods, while the clear acrylic housing allows visual monitoring of the process. Results are calculated automatically using sample weight and final volume.
- Compliant with USP <616>, EP 2.9.34, ISO 3953 & ASTM B527 – Validated for regulated industries.
- Adjustable Tap Height: 3 mm (EP) or 14 mm (USP) – Switch between pharmacopeial standards with ease.
- Programmable Tap Count: 1–9999 taps – Supports standard protocols (e.g., 500 or 1250 taps) or custom methods.
- Dual-Position Design – Test two samples simultaneously for higher throughput.
- Includes Certified Graduated Cylinders – 25 mL and 100 mL borosilicate glass cylinders with volume markings.
- Compact, Benchtop Design with Safety Guard – Quiet operation; meets lab safety requirements.
Trusted in Pharmaceutical and Industrial QC Labs
Tap density directly impacts powder flow, die filling, and content uniformity in tablets. The DPD1001 enables:
Raw material qualification for APIs and excipients
Batch-to-batch consistency verification
Formulation development for direct compression
Quality control of battery cathode/anode powders
Its automation eliminates manual tapping variability, ensuring data integrity for GMP, ISO, and FDA audits.
Whether you’re developing a new oral solid dosage form or optimizing a lithium-ion battery slurry, the Powder Tap Density Tester DPD1001 delivers the precision and compliance your powder analysis demands.
Standardize compaction. Ensure flow. Guarantee quality.
