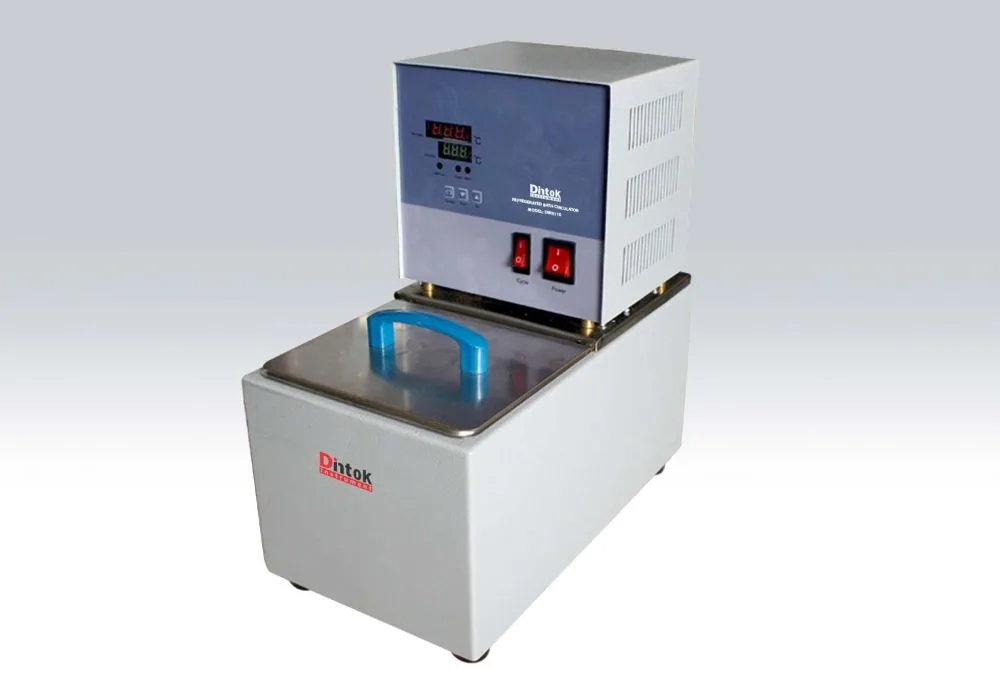

Refrigerated Bath Circulator DWR110
Low-temperature thermostatic bath in microcomputer temperature control adopts the single-chip microprocessor for self-tuning PID control and imported platinum resistor （Pt100） for temperature measurement, enjoying high precision of temperature control and small fluctuation; the application of advanced high-quality compressor contributes to high refrigeration efficiency and low noise. The instrument, running stably and reliably, is safe and easy to operate. The product boasts advantages including:
1. Big-screen back-light LCD to distinctly display setting temperature, actual temperature, heating power and other working state;
2. High-performance single-chip microprocessor for self-tuning PID control and imported platinum resistor for temperature measurement, enjoying high precision of temperature control and small fluctuation;
3. High-performance agitator motor available to enable low noise, lower heating, totally-enclosed and a long working life;
4. Totally-enclosed brand compressor (certain models adopt imported compressor or compressor units) available to enable a quick drop in temperature and high efficiency;
5. Featured in multiple protections against failures as coupling fault, excess temperature, out of control and etc;
6. Circulating pump available for external circulation of thermostatic fluid;
7. Reliable working temperature, easy and safe operation.
The thermostatic bath is widely used in the field of bio-engineering, medicine, food, chemical, metallurgy, chemical analysis, such as oil, supporting the use of other equipment such as: spectrometers, mass spectrometers, refractometer, viscometer, polarimeter, fermentation equipment, rotary evaporators. To provide users with a high-precision, controlled, uniform temperature constant field source, research institutes, universities, factories, lab, quality inspection departments ideal thermostatic bath.
Specification :
| Model | DWR110(Including heating and cooling functions) |
| Temperature | -5℃∽100℃ |
| Temperature accuracy | ±0.1℃ （The liquid in the tank is the water or pure ethanol） |
| Display | Digital tube display |
| Temperature display resolution | 0.1℃ |
| Volume of the bath | 13.5L |
| Bath open size | 145*235*180mm （L×W×D） |
| Dimensions | 450*450*750mmmm （L×W×H） |
| Pump circulation mode | Internal and external circulation |
| Temperature control mode | Microcomputer temperature control, PID control |
| Refrigeration method | Compressor |
| Refrigerating capacity | 380W（@20℃） |
| Circulation flow rate | 10L/min |
| Temperature sensor | Pt100 |
| Power supply | 220V±10% 50Hz/60Hz |
| Total power | 2.5 KW |
Precise Temperature Control from -10°C to 100°C: Refrigerated Bath Circulator DWR110
Maintain exact thermal conditions for demanding laboratory applications with the Refrigerated Bath Circulator DWR110—a high-performance, recirculating chiller-heater engineered for viscosity testing, chemical reactions, sample cooling, distillation, and material stability studies. Combining active refrigeration with heating capability, the DWR110 delivers exceptional temperature stability (±0.05°C) across a wide range of –10°C to 100°C, making it ideal for ASTM, ISO, and pharmacopeial methods requiring precise thermal control.
Engineered for Stability, Uniformity, and Laboratory Integration
The DWR110 Refrigerated Bath Circulator features a hermetically sealed compressor, PID temperature control, and a high-flow centrifugal pump (up to 15 L/min) that ensures consistent temperature delivery through an external circuit or internal stainless-steel reservoir (10–20 L capacity). Its corrosion-resistant stainless-steel bath and PTFE-coated coils support use with water, glycol mixtures, and mild solvents, while the digital interface enables programmable ramps, holds, and remote monitoring.
- Temperature Range: –10°C to 100°C – Covers sub-ambient cooling to high-temperature heating in one unit.
- High Stability: ±0.05°C – Meets requirements for kinematic viscosity (ASTM D445), stability chambers, and reaction control.
- Circulation Flow: Up to 15 L/min at 0.8 bar – Supports external jackets, viscometer baths, or reactor coils.
- Digital PID Controller with Timer – 10-program memory, ramp/soak profiles, and RS232/USB connectivity.
- Low Fluid Volume Design – Minimizes coolant use and speeds thermal response.
- Compact Benchtop Footprint with Casters – Easy to move; includes drain port and overheat protection.
Trusted in Quality Control, R&D, and Standardized Testing
From conditioning lubricants before viscosity testing and cooling exothermic reactions to maintaining sample integrity in chromatography or simulating environmental conditions, the DWR110 ensures repeatability and compliance. Its ability to both heat and cool eliminates the need for separate water baths and chillers—saving space, cost, and setup time.
Whether you’re running ASTM D445 viscosity tests or developing temperature-sensitive formulations, the Refrigerated Bath Circulator DWR110 delivers the precision, reliability, and flexibility your lab requires.
Control temperature. Ensure reproducibility. Accelerate your workflow.
