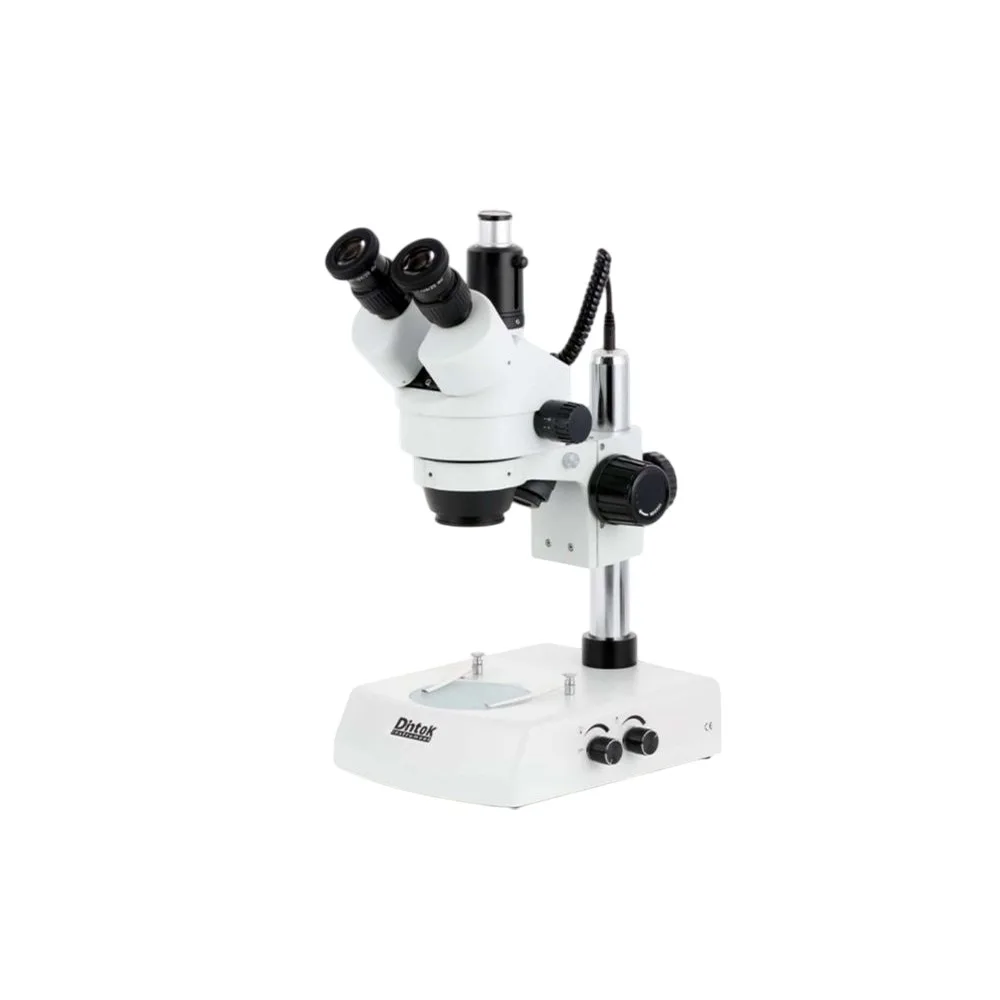

Trinocular & Binocular Stereoscope DBM60
This is a first-class trinocular stereo zoom microscope with LED cool illumination system. Designed to meet the demands of the modern microscopy applications that are temperature-sensitive, like dissecting live tissues or observing live creatures, this scope exceeds all expectations. It incorporates all the most excellent features of a high quality laboratory instrument. This microscope comes with SUPER widefield optics and versatile LED illumination system that provides both incident (top) cool lighting and transmitted (bottom) cool illumination. You can choose between incident illumination shining down onto the object or transmitted illumination through the frosted stage plate. The first is used for the observation of three-dimensional objects and the second for the inspection of the objects that allow light to get through them.
Optics
The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eye point optics to accommodate glasses.
Ocular Adjustment
Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpapillary adjusters simplify the process of aligning the eyepieces for each user.
Trinocular Port
The switched trinocular photo-port provides a dedicated mount for a camera. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images.
Dual-Illumination Stand
The dual-illumination stand provides a turnkey solution for biological and industrial applications. The pillar-based support system offers flexibility with its ability to quickly adjust height and lateral position. The microscope can be easily set and rotated in the mounting collar, and locked in place once adjusted. Large, symmetrical focus knobs provide the precision control needed, with adjustable tension for light or heavy loads as well as comfort.
Overhead and sub-stage LED lighting allows you to work with opaque and translucent objects. The top light is mounted behind the head to provide offset light, and can be tilted for varied effect. This is useful for topological examination, such as with circuit boards and biological cultures. Thin tissue specimens, gemstones, and other translucent materials will benefit from the sub-stage transmitted lighting. A frosted glass stage-plate is provided to diffuse the light for more even back-lighting.
Specification :
| Microscope Head | |
| Head Type | Trinocular and Binocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpapillary Adjustment | Compensation-free gemel, 54-76mm |
| Ocular-port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ±5dp |
| Eyepieces | 10X |
| Photo Port | height-adjustable 23mm tube, SM series |
| Objective Lenses | 0.7X-4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X 0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X 60 lp/mm @ 0.7X |
| Native Field-of-View (10X Eyepieces) | 4.4mm-28.6mm |
| Native Working Distance | 100mm |
| Auxiliary (Barlow) Lens | none included |
| Stand | |
| Stand Type | Pillar stand with integrated top and bottom illumination |
| Focusing-block Focus Range | 50mm |
| Reflected Illumination | 5W LED |
| Transmitted Illumination | 5W LED |
| Stage Illumination Plate Diameter | 95mm |
| Power | 100-240VAC 50/60Hz |
Precision Optical Performance for Every Scientific Application
With Trinocular & Binocular Stereoscope DBM60Discover the unseen with our versatile range of laboratory microscopes—engineered for education, clinical diagnostics, life sciences, materials analysis, and industrial quality control. Whether you’re examining cellular structures, analyzing metallurgical samples, or teaching biology fundamentals, our microscopes combine optical clarity, ergonomic design, and reliable performance to support accurate observation and documentation.
Built for Clarity, Comfort, and Consistency
From entry-level student models to advanced research-grade systems, our microscopes are designed to deliver sharp, high-contrast images with minimal user fatigue. Choose from monocular, binocular, or trinocular configurations, with options for brightfield, darkfield, phase contrast, fluorescence, and digital imaging capabilities to match your workflow.
- High-Quality Optics – Achromatic or plan-apochromatic objectives with anti-reflective coatings for superior resolution and color fidelity.
- LED Illumination – Cool, energy-efficient, and flicker-free lighting with adjustable intensity for consistent sample viewing.
- Ergonomic Design – Adjustable interpupillary distance, inclined eyetubes, and smooth focus knobs for extended comfort.
- Modular & Upgradeable – Easily add cameras, measurement software, or contrast techniques as your needs evolve.
- Durable Construction – Metal frames and precision mechanics ensure stability and long-term reliability.
- CE & RoHS Certified – Compliant with international safety and environmental standards.
Trusted Across Disciplines
Used in universities, hospitals, pharmaceutical labs, and manufacturing facilities worldwide, our microscopes support ISO-compliant workflows, routine diagnostics, and exploratory research alike. Digital-ready models integrate seamlessly with imaging software for image capture, annotation, and reporting—making documentation effortless.
Whether you need a dependable teaching tool or a high-resolution analytical instrument, our microscopes provide the optical performance and build quality you can rely on—sample after sample.
See more. Know more. Advance your science with confidence.
