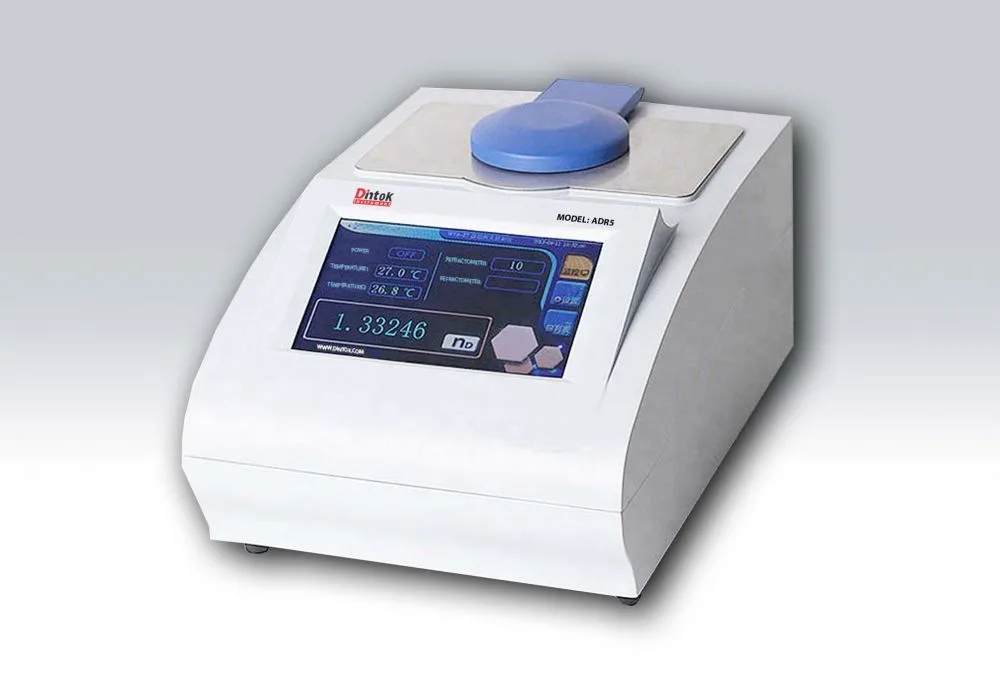

Automatic Refractometer ADR5
Automatic Abbe refractometer can measure the mass fraction (Brix) of transparent, refractive index nD and translucent liquid sucrose solution, glucose, F42fructose syrup, and F55 fructose syrup, but also the solid content of juices, vegetables, honey water content, soft drinks and canned products and user-defined polynomial measurement units. It has a thermostatic control function, using a sapphire prism. The color touch screen is user-friendly. It can perform automatic measurement, with fast speed and good reproducibility. It has the temperature correction, USB, U disk storage and printing functions (the printer is optional). The instrument is compact, built with a variety of industry standard and user-defined measurement units.
The Refractive index is an important optical constant of a substance, which facilitate to understand the optical properties of a substance. The instrument can measure a variety of solution mass fraction (Brix) (0-95%, equivalent to the refractive index of 1.333-1.531).
Therefore instrument can be used in a wide range, including oil industry, oil and fat industry, pharmaceutical industry, paints industry, food industry, daily chemical industry,
sugar industry, geological survey and other relevant factories, schools and scientific research organizations.
Features
Measurement range (nD): 1.30000-1.70000
Indicator error (nD): ±0.0002
Resolution(nD): 0.00001
Reading range of sucrose solution mass fraction (Brix): 0-100%
Error (Brix): ±0.1%
Resolution (Brix): 0.01%
Temperature display range: 0-90ºC
Weight: 4KG
Dimensions: 345mm×245mm×165mm
Power supply: 220V±22V, 50Hz±1Hz
Output interface: RS232, USB, U drive
Specification :
| Instrument model | ADR5 | |
| Measuring range | (nD) | 1.30000-1.70000 |
| ( Brix) | 0-100% | |
| Resolution | (nD) | 0.00001 |
| (Brix) | 0.01% | |
| measurement accuracy | (nD) | ±0.00001 |
| ( Brix) | ±0.01% | |
| Accuracy | (nD ) | ±0.0002 |
| (Brix) | ±0.1% | |
| Built-in measurement method | 8 | |
| Temperature control method | No | |
| Temperature display range | 0-90ºC | |
| Temperature control range | No | |
| Temperature control accuracy | No | |
| Communication Interface | RS232/USB, U disk | |
| Printer model | Dot matrix printer (optional) | |
| data storage | 1000 groups | |
| power supply | 220V±22V, 50Hz±1Hz | |
| Display method | 7 inch color touch screen | |
| Prism material | High hard glass | |
| Instrument size | 345mmx245mm×165mm | |
| Net weight of instrument | 4kg | |
Fully Automated, High-Precision Refractive Index Analysis: Automatic Refractometer ADR5
Achieve lab-grade concentration and purity measurements with minimal effort using the Automatic Refractometer ADR5—a smart, benchtop instrument engineered for pharmaceuticals, food & beverage, chemicals, and academic laboratories. Fully compliant with ISO 2173, OIML R133, and USP <831>, the ADR5 delivers ±0.00002 refractive index (nD) and ±0.01% Brix accuracy with one-click operation, automated temperature control, and seamless data management—ideal for QC, R&D, and regulated environments.
Engineered for Automation, Accuracy, and Compliance
The ADR5 Automatic Refractometer features a high-resolution optical sensor, Peltier temperature control (10–100°C ±0.01°C), and an automatic sample delivery system (via syringe or optional peristaltic pump) that minimizes user error and cross-contamination. Just place your sample—liquid, paste, or semi-solid—and the ADR5 measures, records, and cleans the prism automatically. Results are displayed instantly in nD, % Brix, HF, concentration (custom curves), or user-defined units.
- Ultra-High Accuracy: ±0.00002 nD / ±0.01% Brix – Suitable for pharmacopeial and R&D-grade analysis.
- Fully Automatic Operation – Auto-measurement, auto-cleaning (with solvent rinse), and auto-drying cycle.
- Peltier Temperature Control: 10–100°C (±0.01°C) – Ensures compliance with strict thermal standards.
- Large Touchscreen & Compliance-Ready Software – Stores 10,000+ results; supports 21 CFR Part 11, audit trails, and user roles.
- Multiple Sample Handling Options – Manual injection, autosampler (optional), or inline process probe (for continuous monitoring).
- Chemical-Resistant Sapphire Prism – Scratch-proof and compatible with aggressive solvents.
Trusted in Regulated and High-Throughput Laboratories
From verifying API concentration and checking syrup density in soft drinks to assessing solvent purity or monitoring fermentation progress, the ADR5 eliminates manual variability and accelerates workflows. Its audit-ready data output and calibration tracking make it ideal for GMP, GLP, and ISO 17025 environments.
Whether you’re releasing a pharmaceutical batch or developing a new flavor concentrate, the Automatic Refractometer ADR5 delivers the precision, automation, and traceability your lab demands.
Measure once. Trust forever.
