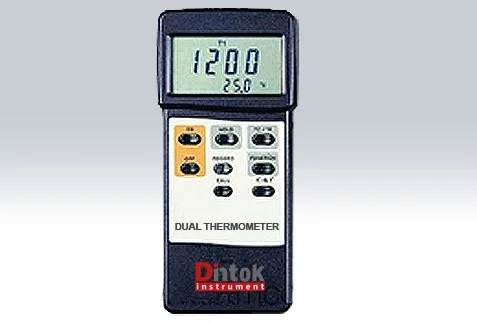

Dual Thermometer TMD9160

Microprocessor circuit assures maximum possible

accuracy, provides special functions and features.

Super large LCD display.

Dual function meter’s display.

Heavy duty & compact housing case.

Maximum and Minimum readings.

Data hold.

Auto shut off saves battery life.

Operates from 006P DC 9V battery.

T1, T2, T1-T2, 1 degree/0.1 degree

Wide range from -50 to 1230 C degree.

Meet any standard type K Temp. probe.

Build in temperature linearity & precision cold junction compensation circuit, high accuracy.

Fitted with standard type K thermocouple input measuring socket.

Specification :

Circuit Custom one-chip of micro processor

Memory Recall Records Maximum and minimum readings with recall

Display 13 mm(0.5″) Super large LCD display

Dual function meter’s display

Sensor Type Thermocouple K(NiCr-NiAl)

Measurement Two channel temp. input (T1, T2), differential temperature, measurement(T1 -T2), ℃/℉, 0.11 data hold

Range – 50 ℃ to 1230 ℃

Sampling Time Approx. 0.8 to 1.0 second

Power Supply 006P DC 9V battery. (Heavy Duty type).

Weight 275 g

Dimension 180 x 72 x 32 mm

Simultaneous Dual-Point Temperature Monitoring with the Dual Thermometer TMD9160

Streamline comparative or differential temperature measurements with the Dual Thermometer TMD9160—a high-precision, dual-channel digital thermometer designed for laboratories, food processing, HVAC, pharmaceutical validation, and industrial maintenance. Equipped with two independent stainless steel probes, the TMD9160 delivers real-time, accurate readings from two locations at once, enabling instant thermal comparisons, gradient analysis, or process verification.

Engineered for Accuracy and Efficiency

The TMD9160 Dual Thermometer measures temperatures from -50°C to +300°C (–58°F to +572°F) on both channels with ±0.3°C high accuracy, making it ideal for applications like pasteurization validation, refrigeration monitoring, heat exchanger testing, or autoclave mapping. Its large backlit LCD displays both readings side-by-side, along with differential (ΔT), max/min, and alarm status—so you never miss a critical thermal event.

Dual Independent Channels – Monitor two points simultaneously (e.g., inlet/outlet, core/surface, ambient/sample).
Wide Range: -50°C to +300°C – Covers ultra-low freezers to high-heat industrial processes.
High Accuracy: ±0.3°C – Suitable for GMP, HACCP, and ISO-compliant workflows.
Programmable High/Low Alarms – Audible and visual alerts for out-of-spec conditions on either channel.
Stainless Steel Probes (304/316 SS) – Food-safe, corrosion-resistant, and fast-response (<3 sec).
Min/Max, ΔT, and Data Hold Functions – Capture thermal trends, differences, and peak values effortlessly.

Trusted for Critical Thermal Verification

Whether you’re validating cold-chain logistics, checking heat distribution in ovens, or troubleshooting HVAC performance, the TMD9160 eliminates guesswork by providing immediate, side-by-side thermal data. Its rugged, compact design and long battery life make it perfect for field audits, production floors, and lab benches alike.

With the Dual Thermometer TMD9160, you don’t just measure temperature—you understand thermal relationships in real time.

Precision. Comparison. Control—all in one intelligent device.
