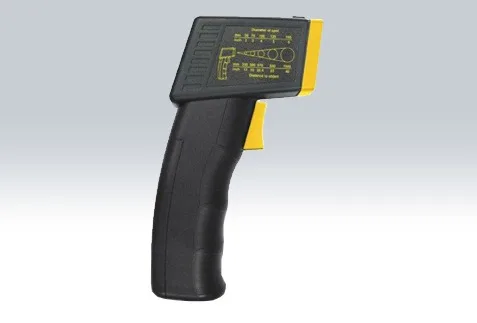

Infrared Thermometer TLD9600

None contact infrared temperature measurement up to 760 C measurement.

Type K thermocouple thermometer, up to 1400 C measurement.

Large LCD display with back light.

D/S ratio value : 50/1.

Min., Max., Differential, Average, Lock mode.

Last measurement memory.

Hi/Lo Temperature Audio Alarm.

Laser target and Back light On/Off control.

Adjustable emissivity value from 0.1 to 1.00.

Preset emissivity value at 0.95.

Power supply by two AAA batteries, long life.

Specification :

Display LCD, 25 mm x 25 mm

Measurement Wave length Region 8 to 14 micro meter.

Measurement Range -60 to 760 C ( -76 to 1400 F )

Target Guide:

* Two laser target guide

* Less than 1 mW

* Class 2 red laser diode. Wave length is 645 nm

Power Supply DC 1.5V AAA ( UM-4 ) battery x 2 PCs, heavy duty or Alkaline.

IR Accuracy ±2 % of reading or ±2 C ( ±4 F).

Operating Temperature 0 to 50 C (32 to 122 F).

Weight 221.8 g

Circuit Exclusive microcomputer circuit

Dimension 48.8×132.7×146 mm ( 1.92 ×5.22 ×5.75 inch )

Fast, Non-Contact Temperature Measurement with the Infrared Thermometer TLD9600

Achieve instant, accurate surface temperature readings from a safe distance with the Infrared Thermometer TLD9600—a professional-grade, non-contact thermometer engineered for industrial maintenance, food safety, HVAC, laboratory, and automotive applications. With a wide measurement range and high optical resolution, the TLD9600 delivers reliable thermal data without contamination, contact, or downtime.

Engineered for Precision and Versatility

The TLD9600 Infrared Thermometer measures surface temperatures from -50°C to +960°C (–58°F to +1760°F) with ±1.5% accuracy, making it ideal for monitoring motors, bearings, electrical panels, cooking surfaces, autoclaves, and more. Its 30:1 distance-to-spot ratio ensures precise targeting—even on small or distant objects—while the built-in laser pointer (single-point or dual-laser for area indication) enhances aiming accuracy.

Wide Range: -50°C to +960°C – Handles everything from cryogenic surfaces to high-heat industrial processes.
30:1 Optical Resolution – Measures a 1-inch spot from 30 inches away for focused, accurate readings.
Backlit LCD with Max/Min/Avg/Diff – Displays real-time, peak, and comparative temperature data instantly.
Emissivity Adjustable (0.10–1.00) – Customize for metals, ceramics, plastics, and other surfaces to improve accuracy.
IP54-Rated Housing – Protected against dust and water splashes for rugged field or plant use.
Data Hold & Alarm Function – Freeze readings for recording; set high/low alerts for critical thresholds.

Trusted Across Industries

From verifying sterilization equipment and detecting electrical hotspots to checking food holding temperatures or engine exhaust systems, the TLD9600 supports HACCP, ISO, and OSHA compliance with fast, repeatable results. Its non-contact design prevents cross-contamination in cleanrooms and food prep areas, while its speed enables rapid scanning of multiple points during preventive maintenance.

Whether you’re a technician, quality inspector, or researcher, the Infrared Thermometer TLD9600 puts professional thermal intelligence in the palm of your hand.

Measure hotter. Measure smarter. Measure safely.
