Long Reach Combination pH Electrode ST 6044
Description
A glass bodied long reach pH combination electrode with a 6mm diameter tip for the lower 15cm section.
The St 6044 is ideal for the measurement of small samples in small containers or tubes or for inaccessible samples which are deeper inside vessels or reaction chambers etc. The upper part of the electrode is a standard 12mm diameter and fits all standard cell holders and clamps.
The St 6044 does not require a separate reference electrode and is compatible with all Smart Co pH meters and most modern alternatives with a BNC socket.

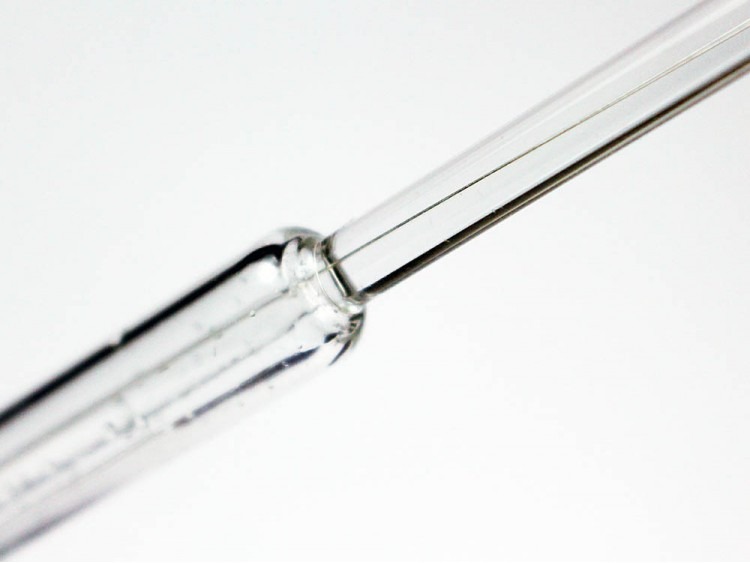

Many long reach pH electrodes have tips which are 3.5 or 3.7mm diameter making them very fragile and impractical for use in a busy laboratory. The St 6044 has a toughened glass tip and a ceramic reference junction which ensures excellent stability a fast response time. The electrode is refillable with KCL filling solution saturated with Ag/AgCl.

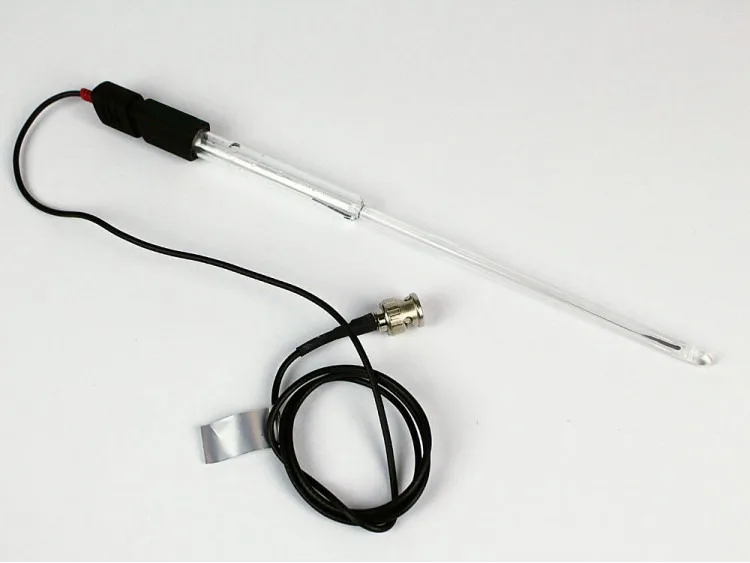

The St 6044 pH combination electrode comes complete with a 1 metre fixed cable and a BNC connector.
Specification :
| Body Type | Glass |
| Cable length | 1000mm |
| Cap Diameter | 16mm |
| Connector | BNC |
| Diameter | 12mm from the cap down to 4.5mm at the tip. |
| Junction Type | Ceramic |
| length | 250mm |
| Reference Type | Ag/AgCl |
Extended-Access pH Measurement with the Long Reach Combination pH Electrode ST 6044
The Long Reach Combination pH Electrode ST 6044 is a specialized pH sensor designed for measuring samples in deep, narrow, or hard-to-reach containers. As a combination electrode, it integrates both the pH-sensitive glass membrane and reference system into a single, easy-to-use probe with an extended shaft, allowing for accurate immersion without direct handling or sample transfer.
Ideal for use in industrial tanks, tall beakers, fermentation vessels, and environmental sampling, the ST 6044 provides reliable pH readings in situations where standard electrodes fall short. Its robust construction and combination design ensure consistent performance and simplified operation for both routine and specialized applications.
