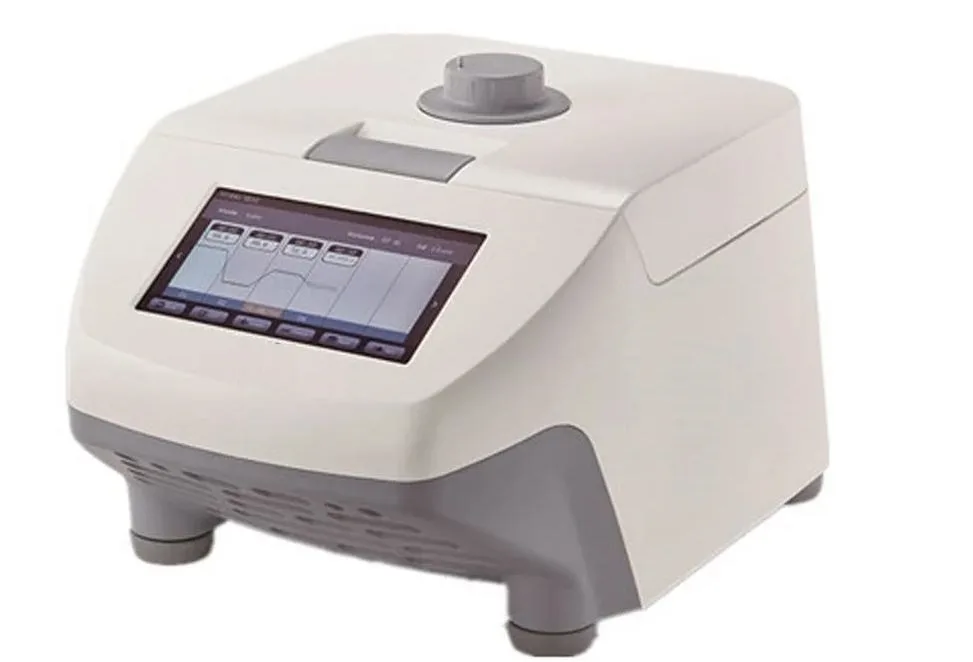

PCR Thermal Cycler DR110G
• Reliable heating/cooling elements and precise temperature control
• Unique design of block ensures the temperature uniformity and repeatable results
• 7 inches large color touch panel screen for easy programming with user friendly software
• High performance DSP and temperature control
• Fast heating and cooling rate
• Large user program storage
Specification :
| Specifications | DR110G |
| Sample Capacity | 96X0.2mL PCR tube, 8X12 PCR plate or 96 well plate |
| Heating Temperature Range | 4-105ºC |
| Lid Temperature Range | 30-110ºC |
| Temperature Display Accuracy | ±0.1ºC |
| Temperature Control Accuracy [at 55ºC] | ±0.3ºC |
| Temperature uniformity [at 55ºC] | <0.3ºC |
| Max. Heating/Cooling Rate | 3ºCSec |
| Gradient Temperature Setting Range | 30-99ºC |
| Gradient Range | 1-42ºC |
| Adapter block material | aluminum |
| Display | 7″ LCD 800×480 |
| Input | Touch panel |
| User defined file system | Max. 30 segments 99 cycles max. 16 folder and 16 files each folder |
| Power off protection | Yes |
| Power Supply | 100-120V/200-240V,50/60Hz |
| Dimension [D×W×H] (Without the heating block) | 280x370x250 mm |
| Weight | 11kg |
Fast, Reliable DNA Amplification with the PCR Thermal Cycler DR110G
Accelerate your molecular biology workflows with the PCR Thermal Cycler DR110G—a high-performance, gradient-enabled thermal cycler engineered for gene expression, genotyping, cloning, diagnostics, and NGS library preparation. Featuring rapid heating/cooling rates, precise temperature uniformity, and an intuitive touchscreen interface, the DR110G delivers consistent, high-yield PCR results for research, clinical, and educational laboratories.
Engineered for Speed, Precision, and Flexibility
The DR110G PCR Thermal Cycler accommodates 0.2 mL tubes or 96-well PCR plates and offers a gradient function across 12 columns (30–105°C), allowing simultaneous optimization of annealing temperatures in a single run. With a maximum ramp rate of 5.0°C/sec, it reduces total run time by up to 40% compared to conventional cyclers. Advanced Peltier technology ensures ±0.2°C well-to-well uniformity and ±0.1°C accuracy for reproducible amplification.
- Block Capacity: 96 x 0.2 mL or 1 x 96-well plate – Standard format for high-throughput applications.
- Gradient Function: 30–105°C (12-column span) – Optimize assays without multiple runs.
- Fast Ramp Rate: Up to 5.0°C/sec – Complete a 30-cycle PCR in under 30 minutes.
- Large Color Touchscreen + USB Port – Create, store, and transfer protocols easily; export run logs.
- Pre-Loaded & Custom Programs – Supports standard, hot-start, touchdown, and long-range PCR.
- Quiet Operation & Compact Footprint – Ideal for shared lab spaces and teaching environments.
Trusted in Research, Diagnostics, and Academic Labs
From detecting pathogens and validating CRISPR edits to screening transgenic lines or teaching PCR fundamentals, the DR110G combines speed, reliability, and ease of use. Its robust thermal performance ensures high specificity and yield—even with challenging templates—while the gradient feature streamlines method development.
Whether you’re running routine diagnostics or developing novel assays, the PCR Thermal Cycler DR110G delivers the performance and flexibility your molecular work demands.
Amplify with confidence. Optimize in one run. Accelerate discovery.
