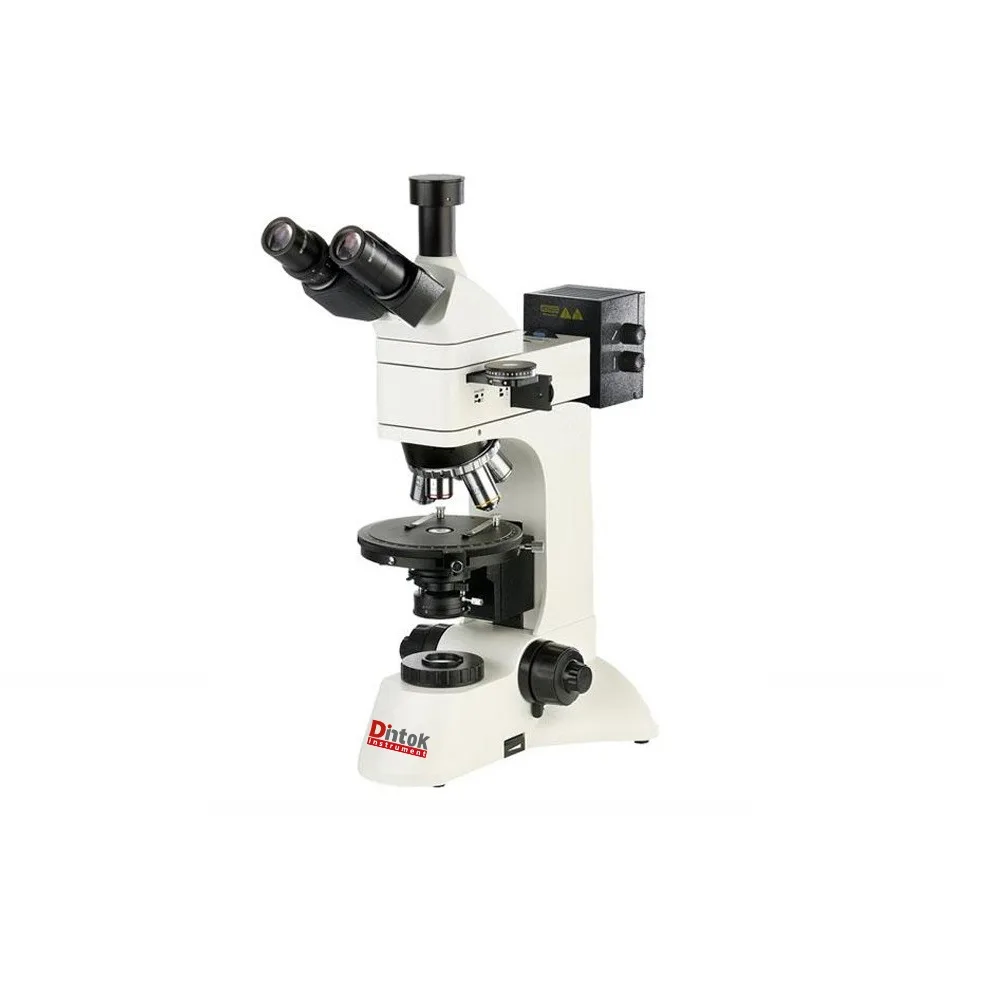

Polarizing Trinocular Microscope 3TRPRO

Research-LeveI reflected and transmitted microscope.
Widely used in crystallography, Geology, Analytical chemistry, Medicire,Biology, Medical jurisprudence,
Environmental ology, Pharmacy, Toxicology, Asbestos analysis and so on.
Supply sharp and clear images by single polarization, orthogonal polarization or conoscopic observation.
Can be used for educational researching Iike qualitative analysis and quantitative measurement.

Specification :

Eyepiece	Wide field WF10X(Φ22mm)
Eyepiece	Dividing eyepiece (field number: Φ22mm) 0.10mm/Div.
Objective	Strain-free plan achromatic objective (no cover glass)
	PL L5X/0.12 (Work distance) ：26.1 mm
	PL L10X/0.25 (Work distance) ：20.2 mm
	PL L40X/0.60£¨spring£© (Work distance) ：3.98 mm
	PL L60X/0.75£¨spring£© (Work distance) ：2.03 mm
Reflected illuminating system	6V30W halogen, brightness enable control.
	Polarizer can be rotated 360°.
	Analyzer can be rotatable 360° with scale and minimum vernier
	Integrated field and aperture diaphragm.
Nosepiece	Quadruple (the center of nosepiece is adjustable)
Intermediate attachment	Puller type bertrand lens
Compensator	λ, λ/4 and quarts wedge compensator.
Eyepiece tube	Trinocular is inclined 30˚ and enable to shoot in 100% light flux.
Focus system	Coaxial coarse/fine focus with tension adjustable and up stop device, minimum division of fine focusing: 2μm.

Precision Optical Performance for Every Scientific Application

With Polarizing Trinocular Microscope 3TRPRO Discover the unseen with our versatile range of laboratory microscopes—engineered for education, clinical diagnostics, life sciences, materials analysis, and industrial quality control. Whether you’re examining cellular structures, analyzing metallurgical samples, or teaching biology fundamentals, our microscopes combine optical clarity, ergonomic design, and reliable performance to support accurate observation and documentation.

Built for Clarity, Comfort, and Consistency

From entry-level student models to advanced research-grade systems, our microscopes are designed to deliver sharp, high-contrast images with minimal user fatigue. Choose from monocular, binocular, or trinocular configurations, with options for brightfield, darkfield, phase contrast, fluorescence, and digital imaging capabilities to match your workflow.

High-Quality Optics – Achromatic or plan-apochromatic objectives with anti-reflective coatings for superior resolution and color fidelity.
LED Illumination – Cool, energy-efficient, and flicker-free lighting with adjustable intensity for consistent sample viewing.
Ergonomic Design – Adjustable interpupillary distance, inclined eyetubes, and smooth focus knobs for extended comfort.
Modular & Upgradeable – Easily add cameras, measurement software, or contrast techniques as your needs evolve.
Durable Construction – Metal frames and precision mechanics ensure stability and long-term reliability.
CE & RoHS Certified – Compliant with international safety and environmental standards.

Trusted Across Disciplines

Used in universities, hospitals, pharmaceutical labs, and manufacturing facilities worldwide, our microscopes support ISO-compliant workflows, routine diagnostics, and exploratory research alike. Digital-ready models integrate seamlessly with imaging software for image capture, annotation, and reporting—making documentation effortless.

Whether you need a dependable teaching tool or a high-resolution analytical instrument, our microscopes provide the optical performance and build quality you can rely on—sample after sample.

See more. Know more. Advance your science with confidence.
